| Brand Name: | QIHAI |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

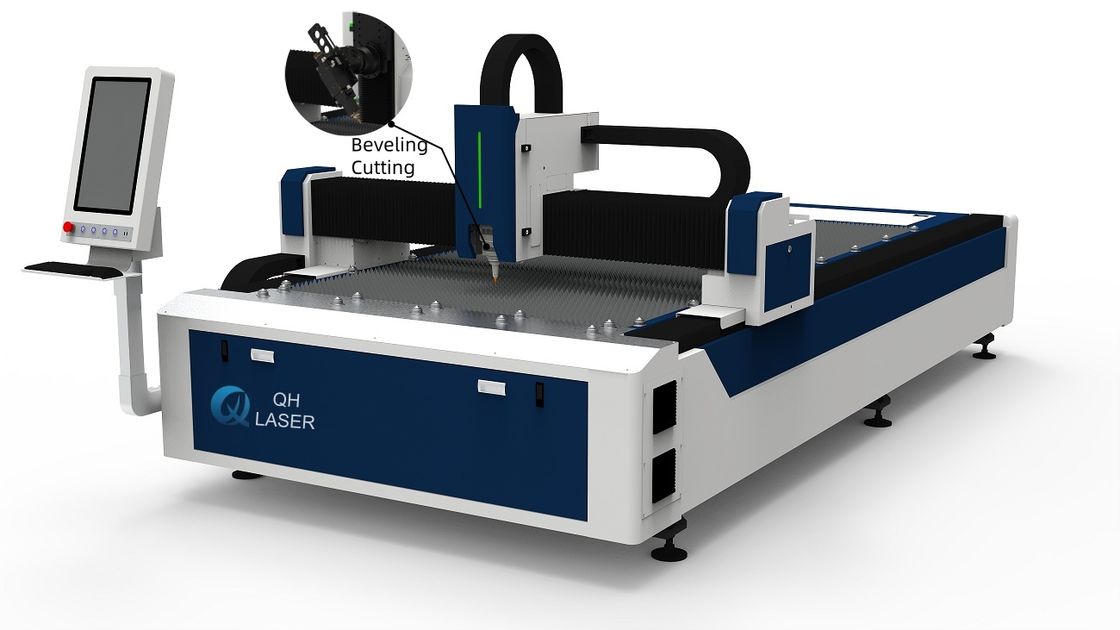

Core Bevel Features: ±45° bevel angle range (0.1° adjustable increments), ±0.5° angle accuracy; supports V/Y/X-type & single/double-sided bevels—eliminates secondary grinding/milling, cutting process time by 30%-50%.
Processing Scope: 3000×1500mm area; cuts 0.5-25mm carbon steel, stainless steel, aluminum, copper, titanium alloy (power-dependent); 40m/min speed for 1mm stainless steel (60%-80% efficiency retained at ±45° bevel).
Precision & Adaptability: Dual-drive gantry ensures ±0.03mm/m positioning accuracy (flat/bevel cutting); CNC offline programming for complex bevel paths; ideal for pressure vessels, steel structures.
Efficiency & Sustainability: 70%-80% photoelectric conversion (20%-30% CO₂ machine power use); matrix dust suction handles bevel-generated chips; low-maintenance fiber design.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1600kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Bevel Cutting Flexibility & Precision. The machine’s ±45° bevel angle range (adjustable in 0.1° increments) and ±0.5° angle accuracy enable it to handle diverse bevel profiles—including V-type, K-type, U-type, and single/double-sided bevels—without relying on extra tooling.
Welding Prefabrication Optimization. Tailored for welding scenarios, its precise bevel cutting directly delivers weld-ready edges. QH-3015F’s bevels ensure tight fit-up between metal sheets, reducing weld gaps and improving weld strength by up to 20%. It adapts to thick-plate deep penetration welding (0.5-25mm) and dissimilar metal welding, making it ideal for steel structures, pressure vessels, and heavy machinery.
Bevel Processing Efficiency. Even at extreme ±45° bevel angles, the machine retains 60%-80% of its standard flat-cutting efficiency (e.g., 24-32m/min for 1mm stainless steel), outperforming traditional beveling equipment (which often sees 40%+ efficiency drops at wide angles). Its dual rack & pinion servo transmission system ensures stable motion during bevel cutting, avoiding angle deviations caused by vibration.
