| Brand Name: | QIHAI |
| Model Number: | QH - 3015FB |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
Beveling Core: ±45° adjustable bevel angle (0.1° increments), ±0.5° accuracy; supports V/U/Y-type 坡口,no secondary processing.
Key Specs: 3000×1500mm area (1000kg max loading), 1500W-20KW power, ±0.03mm axis precision, 100m/min max speed.

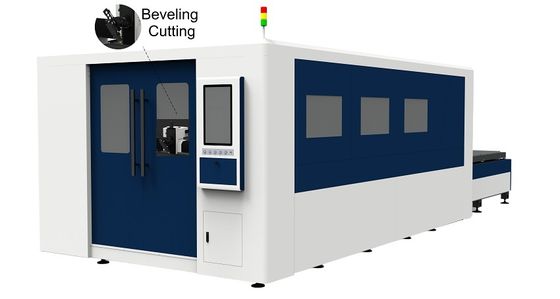

Design & Efficiency: Dual platforms for parallel cutting/loading; enclosed structure protects beveling components; ideal for steel structures/automotive.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3500kg |
| Overall Dimensions | 8500×2280×2150mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
| Beveling Cutting | ±45° |
Advantage
±45° Bevel Flexibility Meets Diverse Welding Needs: The wide ±45° bevel range covers most industrial welding joint requirements—from shallow 5° bevels for thin sheets to steep 45° bevels for thick-plate deep penetration welding. This eliminates the need for specialized beveling machines, reducing equipment investment while ensuring consistent angle quality (±0.5° accuracy) that directly improves weld joint strength.
Dual-Platform Design Amplifies Beveling Throughput: Unlike single-platform machines where loading/unloading pauses bevel cutting, the QH-3015FB’s dual platforms enable continuous operation. For example, a batch of 50×3000×1500mm steel plates with 30° bevels can be processed 35% faster, as the next plate is pre-loaded while the current one is being beveled—critical for high-volume production.
High Precision Ensures Uniform Bevel Edges: The double rack & pinion servo transmission and ±0.03mm axis accuracy prevent bevel angle deviation even at 100m/min maximum linkage speed. This means every section of a 3000mm-long workpiece maintains the same bevel angle, avoiding mismatched weld joints that require rework—reducing scrap rates by 25%-30%.
Enclosed Structure Protects Beveling System Longevity: The enclosed design shields the beveling module’s optical lenses and sensors from dust, metal chips, and splashes (common in bevel cutting). This extends the beveling system’s maintenance cycle by 50% and ensures consistent ±45° accuracy over long-term use, avoiding costly precision calibrations.
