| Brand Name: | QIHAI |
| Model Number: | QH-12025FD |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

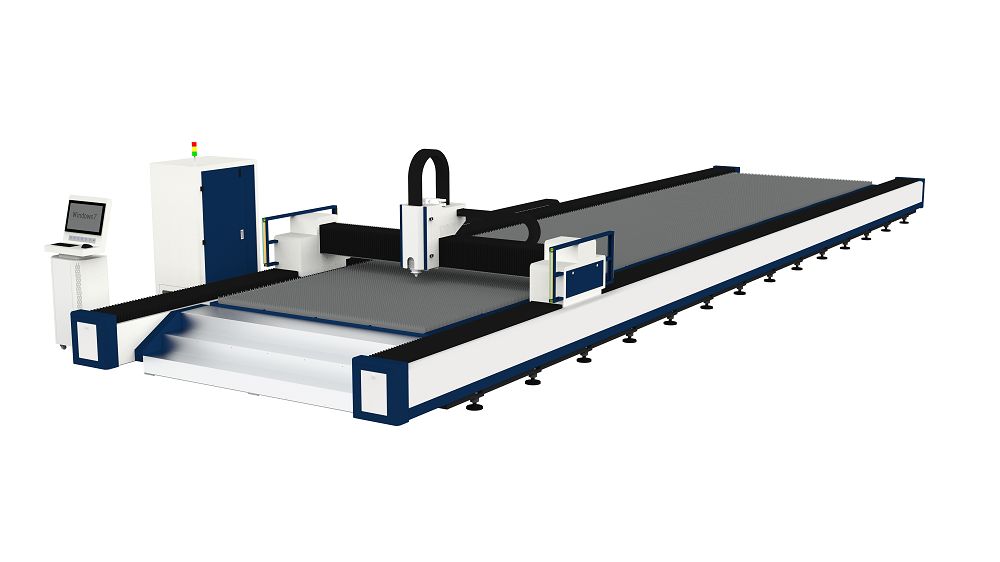

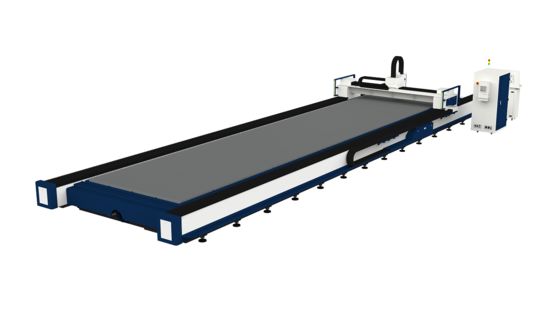

High-Speed Core: 100m/min maximum linkage speed + 1.0G acceleration; double rack & pinion servo transmission prevents motion distortion at full speed, retaining ±0.03mm dual-axis accuracy for large-format cuts.
Key Specs: 12000×2500mm ultra-large processing area, 12000kg max loading, 1500W-20KW power; designed for oversized heavy workpieces.
Fit: Large steel structures/shipbuilding; high-speed cuts slash processing time for 12m-long workpieces by 40%+.
| Specification | Value |
|---|---|
| Processing Area | 12000 × 2500mm |
| Maximum Loading Weight | 12000kg |
| Machine Weight | 10000kg |
| Overall Dimensions | 15200×4060×2050mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High Speed Cuts Large-Format Processing Time Dramatically: With 100m/min speed and 1.0G acceleration, the machine processes a full 12000×2500mm 10mm carbon steel sheet in 30% less time than standard large-format cutters. The double rack & pinion servo transmission ensures consistent motion across the entire 12m X-axis—avoiding speed drops at the workpiece edges—while ±0.03mm accuracy means no post-cut trimming, further shortening project cycles for large structures.
High Speed Synergizes with Ultra-Large Area for Seamless Production: Unlike machines that require splicing small sheets to form large parts (adding 20%-30% processing time), the QH-12025F’s 12000×2500mm area handles full-size workpieces in one pass. Its 100m/min speed turns this large area into a productivity asset: for example, cutting 5 consecutive 2.4m-wide steel plates (forming a 12m structure) takes 25% less time than splicing smaller cuts, reducing labor and material waste from seam processing.
High Speed Maintained Even with Heavy Loads: Most large-format machines slow down when handling maximum-weight (12000kg) workpieces, but the QH-12025F’s robust transmission and 10000kg machine weight stabilize operation—keeping speed at 100m/min even with thick, heavy sheets. This eliminates bottlenecks in high-volume heavy-industry production, where frequent loading of large workpieces paired with slow cutting would otherwise reduce throughput by 15%-20%.
