| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

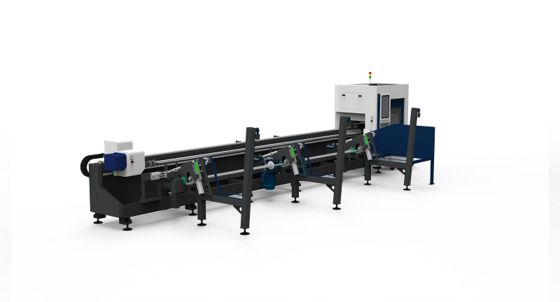

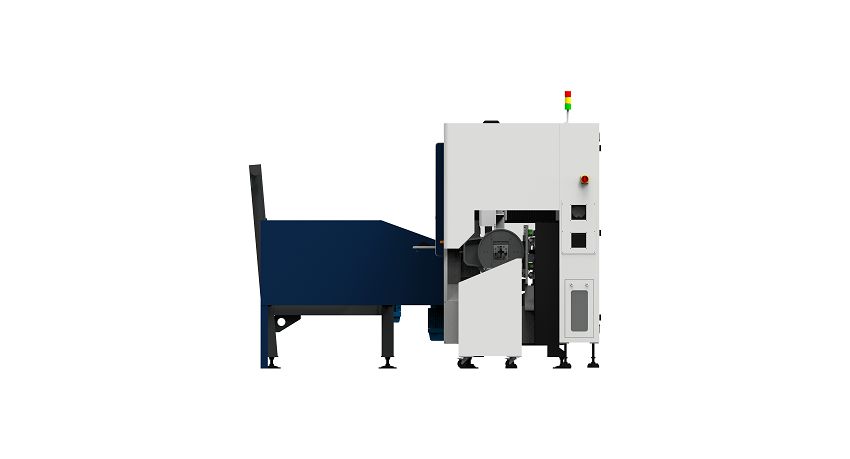

Dual Core Features: Fully-Automatic Loading (auto-feeds 5500-6500mm tubes, no manual lift); Automatic Obstacle Avoidance (real-time hazard detection, 0.1s response to prevent collisions).
Key Specs: Model QH-GA-6012; cuts round (Φ15-500mm)/square (15×15-500×500mm) tubes; ±0.03mm axis precision; 1500W-20KW laser power; side-mounted chuck; 1.8T weight.
Fit: Medium-large batch tube processing (construction/automotive); safe, efficient cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Fully-Automatic Loading Boosts Efficiency & Consistency: The auto-loading system eliminates 20-30 minutes of manual tube lifting/aligning per batch, enabling 60+ tubes processed per shift (vs. 40+ with manual setups). Paired with the side-mounted chuck’s secure clamping, it maintains uniform tube positioning—ensuring the ±0.03mm precision is consistent across every tube, reducing scrap rates by 25% for high-tolerance parts (e.g., automotive frame tubes).
Automatic Obstacle Avoidance Guards Safety & Equipment Lifespan: Unlike standard auto-loading cutters, its real-time hazard detection avoids costly laser head damage (repair costs up to $5,000) and operator injuries. By pausing instantly at misalignments or debris, it also prevents precision deviations (common in collision-disrupted processing), keeping rework rates below 5%—a critical advantage for industries where tube fit-up (e.g., construction trusses) depends on accurate cuts.
Dual Features + Versatile Cutting = Cost Savings: The combination of auto-loading (reduces labor costs by 30%) and obstacle avoidance (cuts downtime by 60%) works seamlessly with the machine’s ability to handle both round and square tubes (no need for separate machines). This versatility, paired with the 1500W-20KW power range (adapts to thin-thick walls), lowers overall equipment and operational costs by 25%-35% while maintaining high productivity.
