| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

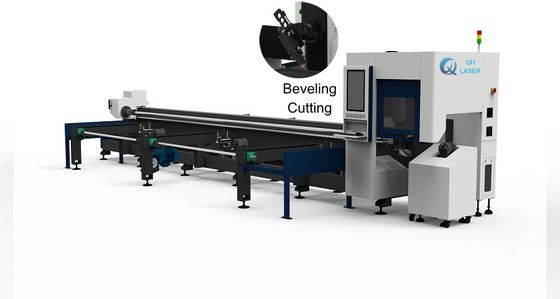

Dual Core Features: Semi-automatic loading (manual tube placement + auto-alignment, <5min setup for custom tube sizes); high-precision beveling (V/U/Y-type bevels, weld-ready edges, no secondary grinding).
Key Specs: QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes (5500-6500mm length); ±0.03mm X/Y accuracy; 1500W-20KW laser; 1.5g acceleration; side-mounted chuck.
Fit & Safety: Suited for medium-batch bevel tasks (construction/automotive); automatic obstacle avoidance protects high-speed beveling operations.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Semi-Automatic Loading Adapts to Bevel Batch Flexibility: Unlike fully automatic systems requiring complex calibration for small-batch beveling, semi-automatic loading lets operators quickly switch between tube types (e.g., Φ100mm round to 200×200mm square) with minimal setup. The auto-alignment function ensures this flexibility doesn’t compromise bevel precision—tubes are positioned to ±0.03mm in seconds, keeping pace with 1.5g acceleration for consistent batch bevel quality.
Beveling Cutting Eliminates Weld Prep Downtime: By integrating beveling directly into tube cutting, the machine eliminates traditional secondary beveling steps (grinding/milling), reducing overall tube processing time by 40%-50%. For example, a 6500mm-long Φ200mm carbon steel tube (10mm wall) can be cut and beveled in 12-15 minutes—vs. 25+ minutes with separate cutting and beveling machines.
High Speed + Precision = Uniform Bevel Edges: Even at 1.5g acceleration, the side-mounted chuck’s stable clamping and ±0.03mm positioning accuracy prevent tube shift during beveling. This ensures bevel angles (adjustable 0°-45°) remain consistent across the entire tube length (e.g., ±0.5° angle deviation for 6500mm tubes), critical for tight weld joint fit-up in structural applications.
Cost-Effective Weld-Ready Processing: Semi-automatic loading avoids the high cost of fully automatic material handling, while integrated beveling eliminates the need for dedicated beveling equipment. For small-to-medium workshops, this means accessing industrial-grade beveled tube processing (up to 120 beveled tubes per shift) at a lower total equipment cost—delivering better value than combining separate cutters, bevelers, and full-auto loaders.
