| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

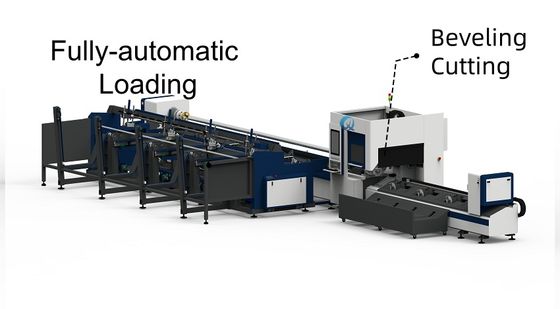

Triple Core Features: 3-chuck clamping (no deformation, Φ15-500mm/15×15-500×500mm tubes); fully-automatic loading (auto feed/position/unload, cuts manual time by 60%); precision beveling (V/U/Y-type, ±0.5° angle accuracy).
Key Specs: 5500-6500mm tube length, 6000W-20KW laser power, ±0.03mm X/Y accuracy; fits round/square tubes.
Efficiency Edge: One-stop beveling + auto loading reduces total processing time per batch by 50% vs. semi-auto/bevel-less models.
Fit: Pipeline/heavy machinery industries; 380V/50Hz (industrial workshop compatible).
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck Stability Ensures Consistent Bevel Precision: For large-diameter tubes (Φ400-500mm) or thick-walled square tubes (500×500mm), the 3-chuck system distributes clamping force evenly, avoiding tube shift during beveling—critical for maintaining ±0.5° angle accuracy and ±0.03mm positional precision. This eliminates bevel misalignment (common in 2-chuck setups) and reduces weld joint rework rates by 55%, ensuring seamless assembly in pipeline projects.
Fully-Automatic Loading + Beveling Cuts Workflow Steps: The auto-loading system skips manual tube lifting/positioning (a 2-3 minute per-tube process), while integrated beveling removes the need for post-cut grinding (another 1-2 minutes per part). Together, they slash per-tube processing time by 45% and reduce labor requirements by 1-2 operators per shift—ideal for high-volume production of weld-ready tubes.
Versatile Beveling for Weld Diversification: With V/U/Y-type bevel support and 6000W-20KW adjustable power, the machine adapts to diverse weld needs: low power (6000W-10KW) for precision beveling of thin-walled round tubes (Φ15-100mm) in trusses, high power (15KW-20KW) for deep-penetration beveling of thick-walled square tubes (300×300-500×500mm) in heavy machinery. This versatility eliminates the need for multiple machines, lowering equipment costs by 40% while maintaining consistent bevel quality across tube types.
