| Brand Name: | QIHAI |
| Model Number: | QH-GZ |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

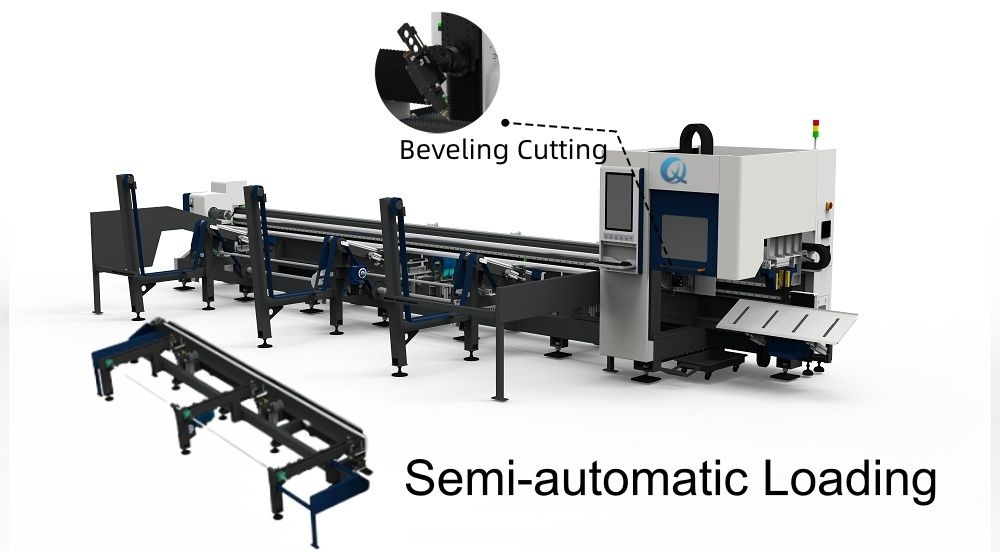

Dual Core: Beveling + Semi-auto Loading: Supports V/U/Y-type bevels (±0.5° angle accuracy); semi-auto loading (manual positioning + auto clamp/align/feed) cuts labor for 5500-6500mm tubes by 60%.
Key Specs: Φ15-500mm (round)/15×15-500×500mm (square) tubes; ±0.03mm X/Y accuracy; 1500W-20KW laser; 2T weight (9620×2950×2080mm); zero-tailing.
Value: One-stop beveling + cutting (no secondary processing); 2-3 mins/tube loading time; fits weld prefabrication needs.
| Model | QH-GZ |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 2T |
| Dimensions (L*W*H) | 9620*2950*2080mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Semi-auto Loading Ensures Consistent Bevel Precision: Manual loading of long tubes often causes misalignment (±0.1-0.3mm), leading to uneven bevels. The QH-GZ’s semi-automatic system auto-aligns tubes to the cutting axis post-manual positioning, pairing with ±0.03mm axis accuracy to maintain uniform bevel angles across 5500-6500mm tubes. For batches of 30+ 6m tubes, this reduces bevel-related scrap by 45% vs. fully manual beveling machines.
Beveling & Loading Synergy Cuts Processing Time: Traditional workflows require separate steps (loading → cutting → manual beveling), which takes 10-12 mins per 6m tube. The QH-GZ completes semi-auto loading (2-3 mins) + beveling + cutting in 5-6 mins per tube—halving total time. The beveling function eliminates secondary grinding/milling, while semi-auto loading avoids downtime from manual repositioning, lifting daily throughput by 30%.
Flexible Beveling for Diverse Tube Sizes: With a 1500W-20KW laser range, it bevels both small (Φ15mm round) and large (500×500mm square) tubes—low power for precision beveling of thin-walled automotive tubes, high power for deep-penetration beveling of thick-walled construction machinery tubes. The semi-automatic loading system easily accommodates the full 5500-6500mm length range, no need for tube truncation, ensuring bevel continuity on long workpieces.
Cost-Effective for Weld Prefabrication: Full-automatic beveling machines cost 40%-50% more and are overkill for small batches. The QH-GZ’s semi-auto loading reduces upfront costs while delivering professional bevel quality—paired with zero-tailing (cuts material waste by 15%), it lowers per-tube processing costs. For businesses with 50-200 tubes/month (weld prefabrication needs), it balances precision, efficiency, and affordability better than fully manual or automatic alternatives.
