| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

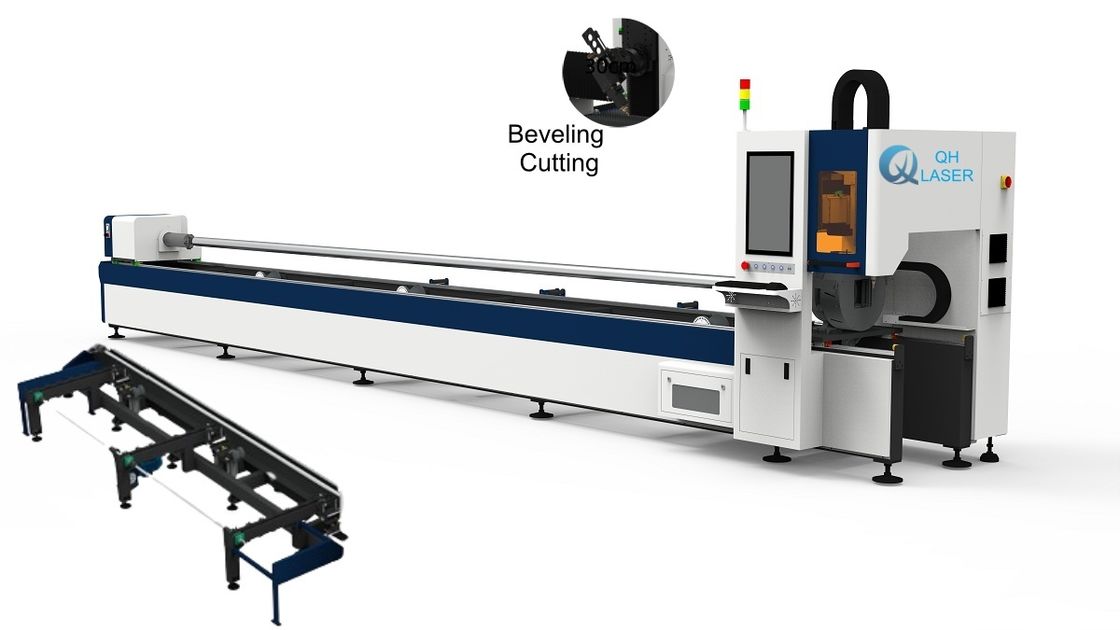

Triple Core Highlights: Horizontally-mounted lathe (stable clamping for 5500-6500mm tubes); ±45° beveling (0.1° increments, ±0.5° accuracy, V/U-type profiles); automatic obstacle avoidance (real-time sensing, collision prevention).
Key Specs: Model QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes; ±0.03mm X/Y-axis precision; 1500W-20KW laser power; 1.8T machine weight, 8500×2920×2050mm dimensions.
Fit: Medium-batch tube beveling (construction/automotive); industrial-grade stability for long/thick tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Horizontally-mounted Lathe Enhances Bevel Uniformity: The horizontal lathe’s axial clamping design eliminates tube wobble—even for 6500mm-long thick-walled (20mm) carbon steel tubes. Paired with ±0.03mm axis precision and ±45° bevel accuracy, it ensures bevel angle variation stays within ±0.5° and depth variation within ±0.1mm across the entire tube length, reducing weld gap issues and cutting rework rates by 35%-40%.
Automatic Obstacle Avoidance Boosts Safety & Uptime: Unlike standard tube cutters that risk laser head damage from misaligned tubes, the real-time obstacle avoidance system detects hazards in 0.1 seconds, pausing operation to prevent collisions. This reduces equipment repair downtime by 60% and eliminates safety risks (e.g., flying debris), critical for continuous medium-batch processing (e.g., 50+ tubes per shift).
±45° Beveling Cuts Weld Prep Time: By integrating ±45° beveling into cutting (no post-cut grinding/milling), the machine shortens overall tube processing time by 40%-50%. For example, a 6000mm-long Φ300mm round tube with V-bevel is finished in 12-15 minutes, vs. 25+ minutes with separate cutting and beveling steps—ideal for tight production schedules.
