| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |
Dual Core Features: Automatic Obstacle Avoidance (real-time hazard detection, 0.1s response to prevent collisions); Follow-up Support (dynamic bracing for 5500-6500mm tubes, eliminates sagging).
Key Specs: Model QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes; ±0.03mm axis precision; 1500W-20KW laser power; side-mounted chuck on horizontal lathe.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, precise cutting for 5.5-6.5m tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |

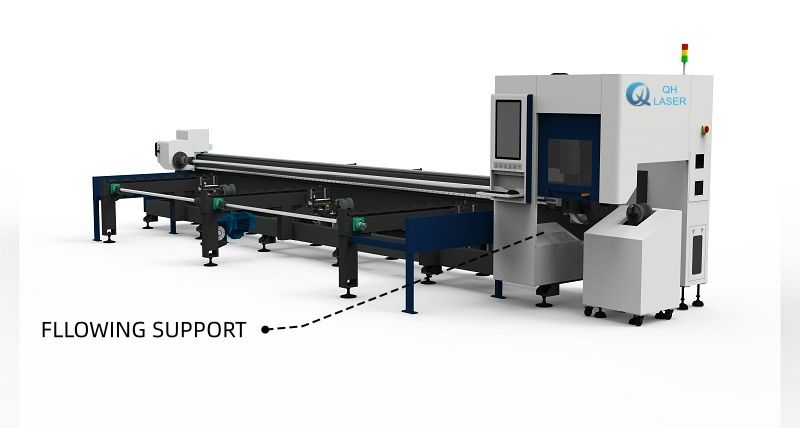

Follow-up Support Guarantees Long-tube Precision: By dynamically adjusting to 5500-6500mm tubes, the Follow-up Support system eliminates sagging—a common cause of ±0.1mm+ cutting deviation in unsupported long tubes. Paired with the machine’s ±0.03mm axis accuracy, this ensures uniform cut quality across the entire tube length, reducing rework rates for large-diameter tubes (up to Φ500mm round/500×500mm square) by 35%-40% compared to machines without follow-up functions.
Automatic Obstacle Avoidance Boosts Safety & Uptime: Unlike standard tube cutters, the real-time detection system responds in 0.1 seconds to hazards (e.g., misaligned tubes during loading, debris in the cutting path), avoiding costly laser head damage and operator risks. This cuts equipment repair downtime by 60% and enables uninterrupted processing of 50+ tubes per shift, critical for meeting tight production schedules in high-volume manufacturing.
Synergy of Dual Features Enhances Workflow Efficiency: The Follow-up Support system works seamlessly with the side-mounted chuck to simplify loading/unloading of 5.5-6.5m long tubes (no overhead lifting required), while Automatic Obstacle Avoidance eliminates time-consuming manual hazard checks before each cut. Together, these features reduce tube changeover and pre-cut preparation time by 25%-30%, accelerating batch processing of both round and square tubes without compromising safety or precision.
