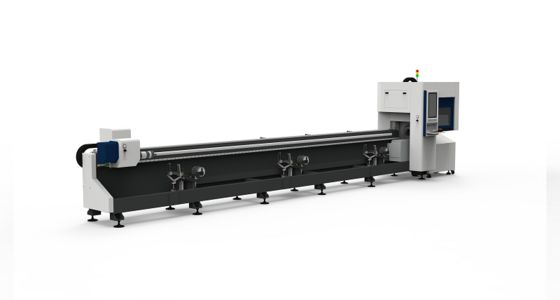

Water Cooling Tube Cutting Machines Side Mounted Lathe Follow Up Support

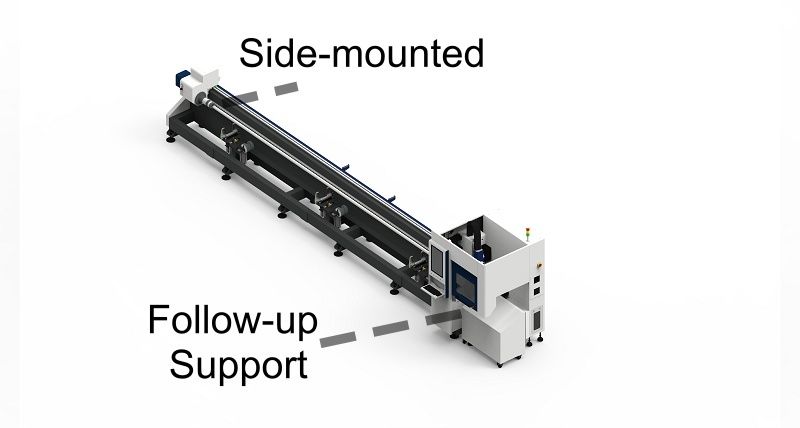

Side-mounted Lathe Follow-up Core: Laterally adjusts to 5500-6500mm long tubes; prevents sagging for round (Φ15-500mm) & square (15×15-500×500mm) tubes, maintaining ±0.03mm cutting accuracy.​

Key Specs: 1500W-20KW laser power; 8500×1380×2050mm size (1.7T weight); compatible with round/square tubes.​

Value: Cuts long-tube setup time by 25% vs. manual supports; reduces sagging-induced scrap rates by 35%.

Sagging Elimination for Long-Tube Precision: For 5500-6500mm long tubes, traditional non-follow-up machines cause 0.5-1mm sagging, leading to cutting deviation. The QH-GS’s side-mounted follow-up system tracks tube movement laterally, adjusting support force at 2-3 dynamic points—keeping the tube straight and ensuring the machine’s ±0.03mm positioning accuracy is maintained throughout full-length cuts or bevels, critical for tight-tolerance applications like hydraulic pipelines.​

Versatile Support for Diverse Tube Types/Sizes: The side-mounted follow-up system adapts to round tubes (Φ15-500mm) and square tubes (15×15-500×500mm) without fixture swaps. For small-diameter tubes (e.g., Φ15mm round), it uses low-force, localized support to avoid crushing; for large-diameter tubes (e.g., 500×500mm square), it increases lateral support pressure to counteract weight-induced sagging. This versatility eliminates the need for specialized support tools, lowering equipment costs and simplifying workflow.​

Efficiency Boost for Batch Long-Tube Production: Without side-mounted follow-up support, operators spend 10-15 minutes per long tube adjusting manual lateral supports. The QH-GS’s automatic system cuts this setup time to 3-5 minutes, while its stable support reduces rework (from sagging errors) by 40%. For batches of 50+ 6000mm tubes, this saves 4-6 hours of production time, improving overall throughput.​

Damage Prevention for High-Value Tubes: Long precision tubes (e.g., automotive chassis tubes) are prone to lateral deformation if supported improperly. The side-mounted follow-up system’s dynamic force adjustment ensures even pressure distribution across the tube’s side—avoiding indentations or bending while maintaining stability. This protects high-value materials, reducing material waste by 25% and enhancing production profitability.
