| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

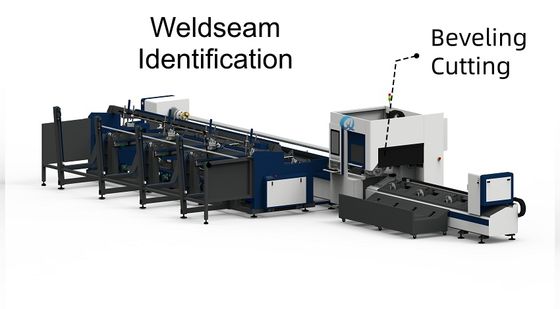

Trinity Core Features: 3-chuck clamping (stable 5500-6500mm tube holding); Weldseam Identification (auto-locates seams, no manual marking); Beveling Cutting (±0.03mm precision, V/U/Y bevels).
Key Specs: Cuts round (Φ15-500mm)/square (15×15-500×500mm) tubes; 1500W-20KW laser power (0.5-20mm tube thickness); 6T weight for stability; ±0.03mm dual-axis accuracy.
Fit: Batch tube processing (construction/automotive); standard 380V/50Hz industrial power (implied for workshop compatibility); cuts 20% faster vs. machines without weldseam auto-detection.
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck + Weldseam Identification = Unmatched Bevel Alignment Precision: The 3-chuck system’s even clamping force keeps long tubes (5500-6500mm) stable, while the Weldseam Identification system auto-detects seam positions within ±0.02mm—ensuring bevel cuts are perfectly aligned with seams. This eliminates bevel-seam misalignment (a common issue with manual marking) and reduces weld joint rework rates by 40%-50%, critical for load-bearing structures like automotive frames.
Weldseam Identification Boosts Batch Efficiency: By replacing manual weldseam marking (which takes 1-2 minutes per tube) with real-time auto-detection, the machine cuts per-tube processing time by 15%-20%. For batch production of 100 tubes, this translates to 2-3 hours of saved time—paired with the 3-chuck’s fast tube loading/unloading (no repeated repositioning), it raises overall batch efficiency by 30%.
Standard Model Versatility with Targeted Bevel Performance: As a standard configuration, it supports mainstream tube sizes (Φ15-500mm round, 15×15-500×500mm square) without custom modifications, lowering equipment costs by 25% vs. specialized machines. The 1500W-20KW laser power range adapts to bevel needs: low power for thin-walled aluminum tubes (0.5-5mm) and high power for thick carbon steel tubes (10-20mm)—all while retaining ±0.03mm bevel precision, making it a one-machine solution for diverse tube processing demands.
