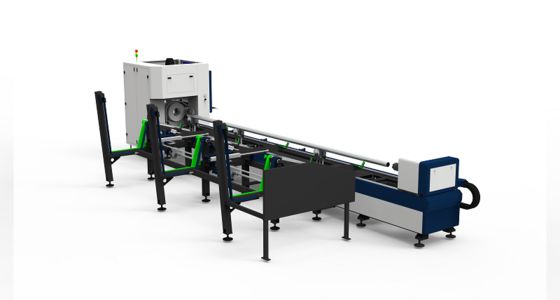

QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Lathe Fully-automatic Loading

Name: QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Lathe Fully-automatic Loading
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GZ
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GZ
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Condition:

New

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

zero-tailing tube cutting machine

zero-tailing tube laser cutting machine

20mm tube cutting machine

Product Description

QH-GZ Zero-tailing Laser Tube Cutting Machine Horizontally-mounted Lathe Fully-automatic Loading

Description​

The QH-GZ Zero-tailing Laser Tube Cutting Machine, featuring a horizontally-mounted lathe structure and integrated fully-automatic loading system, is a high-efficiency solution for batch tube processing in industries like construction machinery, automotive components, and hydraulic pipelines. Its core strength lies in the fully-automatic loading system: it autonomously completes tube feeding (from material rack to lathe), precise positioning, and clamping—no manual intervention required—seamlessly handling long tubes (5500-6500mm in length) and diverse tube types (round tubes: Φ15-500mm; square tubes: 15×15-500×500mm).

Quick Detail

Fully-automatic Loading Core: Autonomous tube feeding, positioning, and clamping; handles 5500-6500mm long tubes without manual intervention—cuts batch preparation time by 50%.

Key Specs: Fits Φ15-500mm round/15×15-500×500mm square tubes; 1500W-20KW laser power; ±0.03mm axis precision; 2T horizontally-mounted lathe (9620×2950×2080mm).

Added Value: Zero-tailing reduces material waste; horizontal structure stabilizes automatic loading of heavy tubes; ideal for batch automotive/hydraulic tube processing.

Product Specifications

Model	QH-GZ
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	2T
Dimensions (LWH)	962029502080mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Batch Efficiency Boost from Full Automation: Traditional tube cutting requires 2-3 workers to manually lift, align, and load 5500-6500mm long tubes (risky for heavy Φ500mm round tubes). The QH-GZ’s fully-automatic system completes loading in 60-90 seconds per tube—for a batch of 100 tubes, this cuts loading time from 4-6 hours (manual) to 1.5-2.5 hours, while increasing daily processing capacity by 30%-40%.

Consistent Precision via Automated Positioning: Manual loading often causes slight tube misalignment (0.1-0.3mm deviation), leading to cutting errors. The fully-automatic loading system uses servo-driven positioning to ensure ±0.03mm alignment accuracy, matching the machine’s X/Y-axis precision. This guarantees uniform cut edges and bevel quality (if paired with bevel functions) across every tube in a batch—critical for hydraulic pipelines where even small misalignments cause leakages.

Safety & Labor Cost Savings: Heavy tube manual handling (e.g., 500×500mm square tubes weighing 100+kg) poses high injury risks. The fully-automatic system eliminates manual lifting, reducing workplace accidents by 90%.
