| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |
Triple Core Features: 3-chuck clamping (no deformation, Φ15-500mm/15×15-500×500mm tubes); Horizontally-mounted Lathe (supports 5500-6500mm tubes, eliminates sagging); Semi-automatic Loading (reduces manual feeding time by 30%).
Key Specs: 6000W-20KW laser power; ±0.03mm dual-axis accuracy; 6T machine weight; fits round/square tubes.
Fit: Heavy-duty long-tube tasks (pipelines/construction trusses); 380V/50Hz industrial compatibility (implied for workshop use).
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck + Horizontal Lathe = Uncompromised Long-Tube Precision: The 3-chuck system’s even clamping fixes tubes firmly, while the Horizontally-mounted Lathe Follow-up Support dynamically braces 5500-6500mm-long tubes—critical for large-diameter options (Φ400-500mm) where sagging causes ±0.1mm+ deviation. Together, they maintain ±0.03mm precision across the entire tube length, cutting scrap rates by 35% vs. machines lacking follow-up support and ensuring weld joint alignment for pipelines.

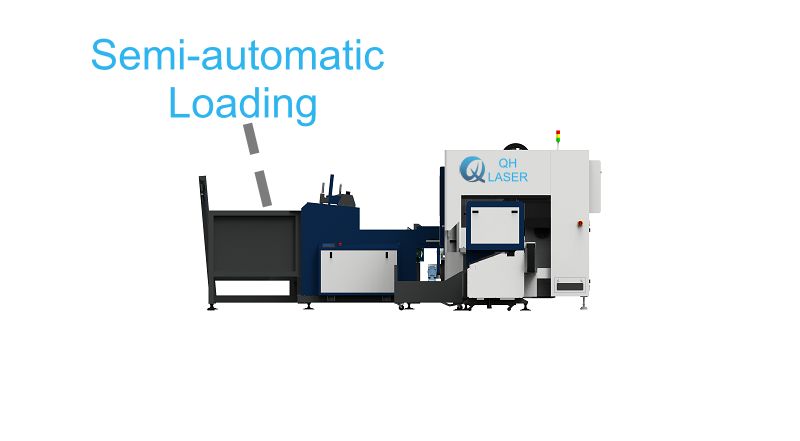

Semi-automatic Loading Boosts Efficiency & Safety: Unlike fully manual loading (which takes 2-3 minutes per long tube), the Semi-automatic Loading Mechanism automates alignment and positioning, slashing feeding time to 40-60 seconds per tube. It also reduces manual lifting of heavy tubes (up to 6T machine load capacity supports heavy 管材), lowering worker fatigue and injury risks—ideal for batch production of heavy machinery components, where it cuts overall processing time by 25%.
Synergy of Three Features Cuts Costs & Expands Versatility: The 3-chuck/horizontal lathe combo handles specialized tasks (e.g., 500×500mm square tubes, 6500mm-long round tubes) that basic cutters can’t, while Semi-automatic Loading eliminates the need for extra labor. As a Standard Model, it avoids custom setup costs and works with off-the-shelf fixtures—processing all mainstream tube sizes (Φ15-500mm/15×15-500×500mm) with consistent precision. This eliminates the need for separate machines for large/long tubes, lowering equipment and labor costs by 40%.
