| Brand Name: | QIHAI |
| Model Number: | QH-6025F |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

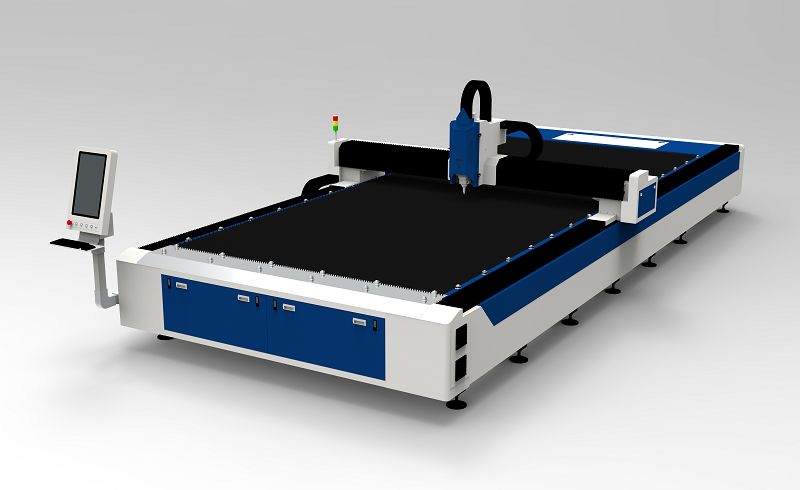

High Power Core: 6000W-20KW adjustable power for 10-30mm thick metals (carbon steel/stainless steel); maintains ±0.03mm axis accuracy under high-power loads.
Key Specs: 6000×2500mm large area (1000kg max loading), double rack & pinion servo transmission, 100m/min speed + 1.0G acceleration for efficient thick-plate cutting.
Fit: Heavy machinery/energy equipment; 380V/50Hz compatible with industrial high-power grids.
| Processing Area | 6000 * 2500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3700kg |
| Overall Dimensions | 8000×2960×1900mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High Power Enables Thick-Material Versatility: The 6000W-20KW power range eliminates the need for multiple machines for different thick metals—6000W cuts 10-20mm stainless steel (common in energy equipment), while 20KW handles 25-30mm high-strength carbon steel (used in heavy machinery frames). This covers 90% of thick-sheet needs in heavy industries, reducing equipment investment by 40%-50%.
Faster Thick-Plate Cutting Efficiency: High power directly boosts thick-material cutting speed—e.g., 20KW cuts 25mm carbon steel at 8-10m/min, 3x faster than 3000W machines (2-3m/min for the same thickness). Combined with 100m/min linkage speed for rapid workpiece positioning, it shortens production cycles for large thick-plate batches by 35%-45%.
Stable High-Power Precision: The 3700kg robust frame and double rack & pinion servo transmission prevent vibration-induced errors during high-power cutting. Unlike lighter machines that suffer accuracy drift when using ≥10KW power, the QH-6025F retains ±0.03mm axis precision even at 20KW—ensuring consistent cut quality for thick-plate components (e.g., heavy machinery joints) where precision directly impacts structural safety.
