| Brand Name: | QIHAI |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |

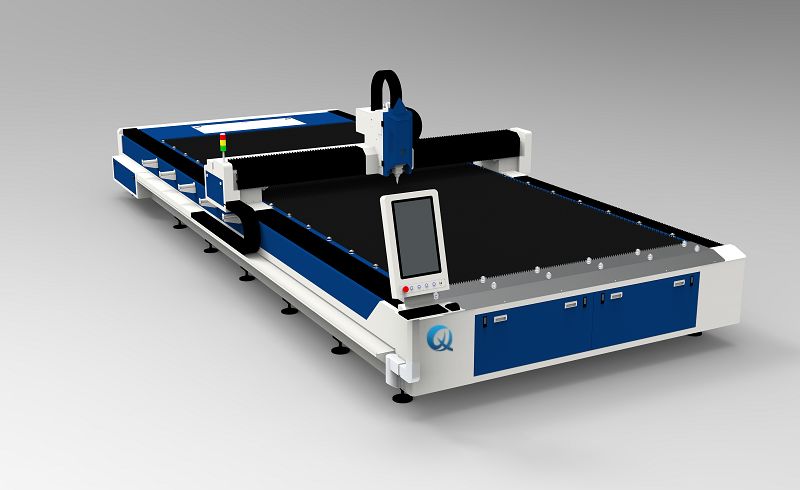

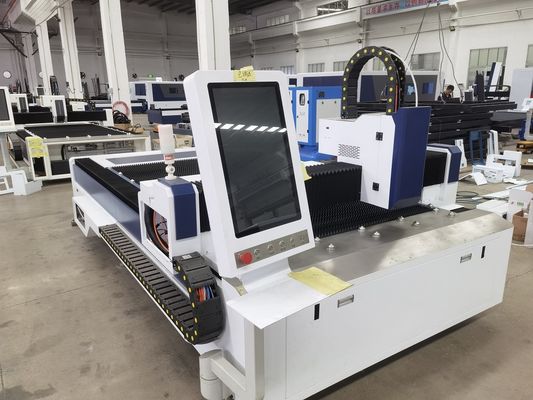

High Power Core: 6000W-20KW laser enables one-pass cutting of 15-50mm carbon steel/10-30mm stainless steel; no multi-pass processing needed.
Key Specs: 3000×1500mm area (800kg max loading), ±0.03mm X/Y accuracy (stable for high-power thick-metal cuts), 100m/min speed, double rack & pinion servo transmission.
Fit: Thick-metal industries (construction machinery, pressure vessels); 380V/50Hz industrial power compatibility.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1600kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
High Power Eliminates Thick-Metal Processing Bottlenecks: The 6000W-20KW range cuts 50mm carbon steel in one pass (vs. 2-3 passes with 3000W models), slashing processing time for thick sheets by 55%-65%. It also avoids heat accumulation from multi-pass cuts, reducing material deformation (common in thick-metal processing) and lowering scrap rates by 25%-30%.
High Power + High Speed Boosts Medium-Format Efficiency: For a 3000×1500mm×20mm carbon steel sheet, the 6000W-20KW power ensures fast cut penetration, while the 100m/min linkage speed enables quick traversal across the 3m length—completing the cut in 8-10 minutes (vs. 15+ minutes with low-power machines). This is critical for medium-batch thick-metal production deadlines.
Precision Retention Under High Power: The double rack & pinion servo transmission and 1600kg sturdy frame stabilize the machine during high-power operation (e.g., 20KW cutting 50mm steel), maintaining ±0.03mm axis accuracy. This ensures consistent cut edges and tight tolerances, which is essential for heavy-duty component assembly (e.g., construction machinery hinges) where fit precision directly impacts performance.
Versatile High-Power Adaptability: The 6000W-20KW adjustable range suits diverse thick-metal needs: 6000W-10KW for 15-25mm stainless steel (common in pressure vessels), 15KW-20KW for 30-50mm carbon steel (used in construction machinery frames). This eliminates the need for multiple machines for different thicknesses, reducing equipment investment while maintaining high-power cutting consistency.
