80w 100w 120w Option CO2 Laser Cutting Machine Ac 220v 50HZ 60HZ

Name: 80w 100w 120w Option CO2 Laser Cutting Machine Ac 220v 50HZ 60HZ
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-9060C
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-9060C
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Warranty:

1 Year

Packaging Details:

wood

Highlight:

CO2 Laser Cutting Machine 120w

220v CO2 Laser Cutting Machine

60HZ c02 laser cutting machine

Product Description

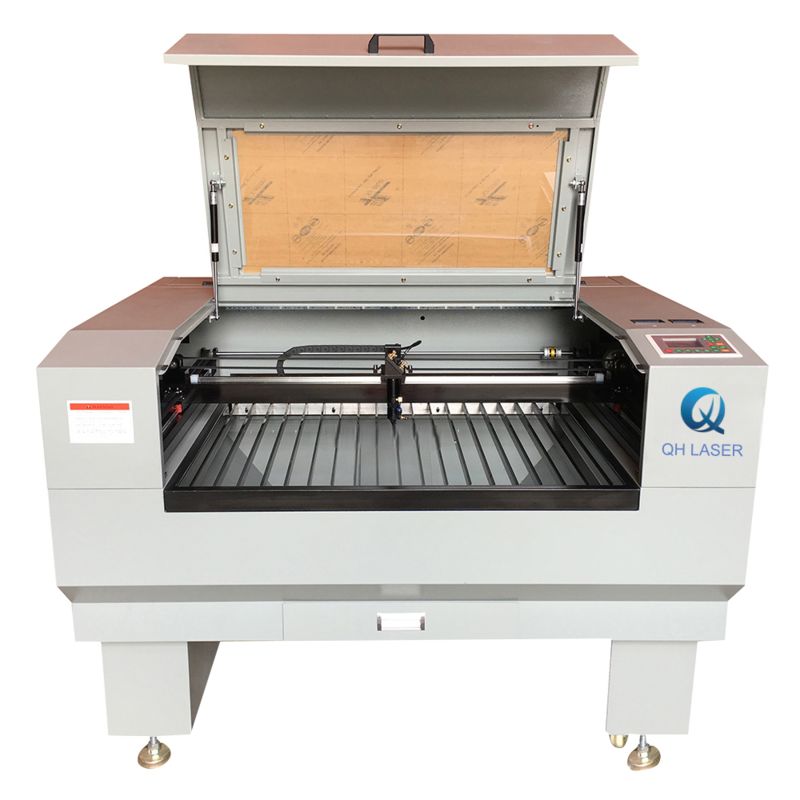

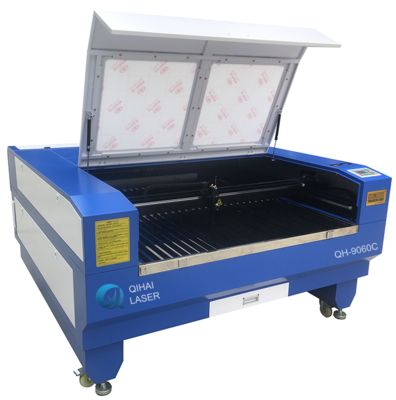

QH-9060C CO2 Laser Cutting Machine

Description

The QH-9060C is a versatile CO₂ laser cutting & engraving machine optimized for precision processing of non-metallic materials (acrylic, wood, leather, paper) and thin metals, leveraging the unique 10.6μm wavelength of CO₂ laser technology for efficient material absorption. It features a 900×600mm engraving/cutting area, with pass-through doors enabling processing of extremely long materials—addressing the limitation of fixed-area machines. Equipped with selectable 80W/100W/120W CO₂ laser tubes (6-month natural life), it achieves a maximum cutting thickness of ≤15mm and offers stepless speed regulation: 0-18000mm/min for cutting and 0-64000mm/min for engraving, balancing efficiency with precision.

Key configurations tailored to CO₂ laser performance include an imported 3-reflector + 1-focus lens set (ensuring stable laser beam transmission), CW3000 industrial chiller (critical for maintaining CO₂ laser tube stability at 0℃-45℃ operating temperature), and Taiwan HIWIN guide rails paired with Leadshine stepper motors (delivering ±0.01mm reset positioning accuracy and 0.025mm resolution). It supports diverse graphic formats (BMP, DXF, AI, etc.) via Ruida control system and is compatible with Windows OS, with an LCD screen + USB interface for easy operation. Weighing 300kg and packaged in export-standard polywood cases, it comes with auxiliary equipment (exhaust fan, air pump, chiller) and optional rotary/up-down modules, making it ideal for signage, packaging, craft, and small-batch non-metallic processing industries.

Quick Detail

Core CO₂ Laser Traits: 10.6μm wavelength (optimized for non-metallic material absorption); 80W/100W/120W selectable laser power; ≤15mm max cutting thickness.
Precision & Efficiency: 900×600mm area + pass-through doors (long materials); 0.025mm resolution, ±0.01mm reset accuracy; 0-64000mm/min engraving speed.
CO₂-Specific Support: CW3000 chiller (laser tube stability); imported lens set (beam integrity); Ruida control (easy CO₂ laser parameter adjustment).
Fit: Non-metallic processing (signage, crafts); small-batch thin-metal cutting; 3-5 days production lead time.

Technical Parameter

Model	QH-9060C
Engraving area	900x600mm(X 900, Y 600)
Machine size	1500x1150x1120mm
Cutting speed	0-18000mm/min
Engraving speed	0-64000mm/min(stepless speed regulating)
Laser tube power option	80w/100w/120w option
Natural life of laser	6 month
Laser wave length	10.6um
Resolution ratio	0.025mm
Minimum shaping character	Chinese character 2mm/ letter 1mm
Resetting positioning accuracy	±0.01mm
Voltage	Ac220v±10%,50HZ/60HZ
Operating Temperature	0℃-45℃
Operating humidity	5%-95%
Graphic Format Supported	BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
Software supported	Coreldraw,AutoCAD,Photoshop.llustrator etc
Lens	Imported reflect lens(3pcs)+focus lens(1pcs)
Guide rail	High quality tanwan hiwin guiderail
Driver type	Leadshine stepmotor
Cutting table	Aluminum slot/ honeycomb option
Cooling sytem	CW3000 Industrial Chiller
Software	Ruida control system
Opearate System	Win98/Win2000/WinXP/Win 7/vista
Interface	LCD screen with USB interface
Max Cutting thickness	≦15mm
Pass through doors	Allow to cut extremely long materials
Packing	Polywood case for export standard
Assistant equipment	Exhaust-fan,air pump,industry chiller
Configuration	Rotary and up and down
Produce time	3-5days
CBM/GW	3.5M3/300KG

Advantage

CO₂ Laser’s Non-Metallic Processing Superiority: The 10.6μm wavelength of CO₂ laser is highly absorbed by non-metals (acrylic, wood, leather)—unlike fiber lasers that struggle with such materials. This enables smooth, burr-free cuts (≤15mm thickness) and fine engraving (2mm Chinese characters/1mm letters), eliminating post-processing and boosting craft/signage production quality.
Balanced Power & Energy Efficiency: With 80W/100W/120W low-to-medium CO₂ power options (vs. high-power fiber lasers), the machine consumes less energy while meeting small-batch processing needs. The CW3000 chiller further optimizes CO₂ laser tube lifespan (6-month natural life) by preventing overheating, reducing replacement costs compared to uncooled CO₂ systems.
Flexibility for Long/Irregular Materials: Pass-through doors solve the CO₂ laser’s traditional fixed-area limitation, allowing processing of extremely long materials (e.g., long acrylic strips for signage) without cutting them into segments. Optional rotary modules expand this flexibility to cylindrical non-metals (e.g., wooden poles), making the machine adaptable to diverse craft/industrial needs.
Precision-Driven by CO₂-Optimized Components: Imported reflect/focus lenses maintain CO₂ laser beam integrity, ensuring 0.025mm resolution—critical for detailed engraving (e.g., intricate patterns on leather). Taiwan HIWIN guide rails and Leadshine steppers complement this by delivering ±0.01mm reset accuracy, ensuring consistent precision across multiple cuts/engravings, a key advantage over low-cost CO₂ machines with poor component quality.
