| Brand Name: | QIHAI |
| Model Number: | QH-1325C |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 500 Set/month |

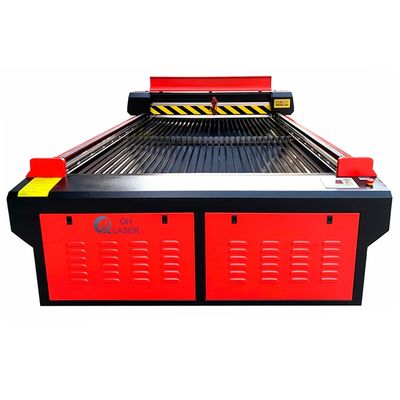

QH-2513C CO2 Laser Cutting Machine
Description
The QH-2513C is a dedicated CO₂ Laser Cutting Machine engineered for high-performance processing of non-metallic materials, leveraging the unique 10.6μm wavelength of CO₂ lasers—ideal for industries like advertising, craft manufacturing, acrylic fabrication, and packaging. It features an 80W-150W CO₂ laser tube range (with 6-9 months warranty based on power) that excels at cutting/engraving materials such as acrylic, wood, leather, paper, and foam. Its 2500×1300mm working area, paired with pass-through doors, enables processing of both standard-sized workpieces and extremely long materials, while the honeycomb/knife cutting table caters to different non-metallic material thicknesses (e.g., 130W model cuts 15-20mm acrylic smoothly).
Quick Detail
Core CO₂ Laser Features: 80W-150W CO₂ laser tube (10.6μm wavelength) for non-metallics; 130W cuts 15-20mm acrylic; 6-9 months laser tube warranty.
Key Specs: 2500×1300mm area + pass-through doors (long materials); 0.025mm resolution, ±0.01mm reset accuracy; 0-18000mm/min cutting speed, 0-64000mm/min engraving speed.
CO₂-Optimized Setup: Imported US lenses, Taiwan linear rails, industrial chiller (CO₂ tube cooling); 550W exhaust fan (non-metallic fume removal); Ruida control (supports major design software).
Technical Parameter
| Model | QH-2513C | ||
| Working Area | 2500x1300mm(x 2500.Y 1300) | ||
| Machine size | 3300x2100x1120mm | ||
| Laser tube power | 80W/100W/120W/130W/150W | ||
| Warranty laser tube | Warranty 6-9months(according different power) | ||
| Cutting Speed | 0-18000mm/min | ||
| Engraving speed | 0-64000mm/min(stepless speed regulating) | ||
| Laser wave length | 10.6um | ||
| Lens | Import USA lens | ||
| Guide Rail | High quality taiwan linear guiderail | ||
| Driver Type | Leadshine stepmotor | ||
| Cutting table | Honeycomb table /knift table | ||
| Software | Ruida control system(rd6442G) | ||
| software supported | Coreldraw,AutoCAD,Photoshop.llustrator etc | ||
| Graphic Format Supported | BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop | ||
| Resolution ratio | 0.025mm | ||
| Minimum shaping character | Chinese character 2mm/ letter 1mm | ||
| Resetting positioning accuracy | ±0.01mm | ||
| Voltage | Ac220v±10%,50HZ/60HZ | ||
| Operating Temperature | 0℃-45℃ | ||
| Operating humidity | 5%-95% | ||
| Opearate System | Win98/Win2000/WinXP/Win 7/vista | ||
| Interface | LCD screen with USB interface | ||
| Max Cutting thickness | (130w cut acrylic 15-20mm) | ||
| Pass through doors | Allow to cut extremely long materials | ||
| Assistant equipment : | Exhaust fan 550W,haili air pump 135W ,industry chiller | ||
| Produce time | 5days | ||
| CBM/GW | 4.5M3/350KG | ||
| Produce time | 3-5days | ||
| CBM/GW | 3.5M3/300KG | ||
Advantage
CO₂ Laser’s Superior Non-Metallic Processing: The 10.6μm wavelength of CO₂ lasers is highly absorbed by non-metals (acrylic, wood, leather), enabling cleaner, smoother cuts—e.g., the 130W model cuts 15-20mm acrylic with edge gloss (no burrs or charring), eliminating secondary polishing. Unlike fiber lasers (better for metals), it avoids material damage or inefficient cutting on non-metallics, making it the top choice for acrylic signage and craft production.
Stable CO₂ Laser System for Longevity: Tailored for CO₂ laser operation, the machine includes critical components: imported US lenses (minimizing 10.6μm laser loss, ensuring consistent power delivery) and an industrial chiller (preventing CO₂ laser tube overheating, extending its lifespan to match the 6-9 month warranty). The high-quality Taiwan linear guide rails also reduce vibration during high-speed engraving (up to 64000mm/min), maintaining 0.025mm resolution for fine details (e.g., 2mm Chinese characters, 1mm letters).
Flexibility for CO₂ Laser Applications: The pass-through doors address a key need in non-metallic processing—cutting extremely long materials (e.g., extended acrylic strips for signage) that exceed the standard 2500mm area. Additionally, compatibility with CorelDraw, AutoCAD, and multiple graphic formats (BMP, DXF, AI) allows seamless integration with design workflows, while the honeycomb/knife table swap supports both delicate engraving (paper, leather) and thick cutting (15-20mm acrylic), adapting to diverse non-metallic processing demands.
