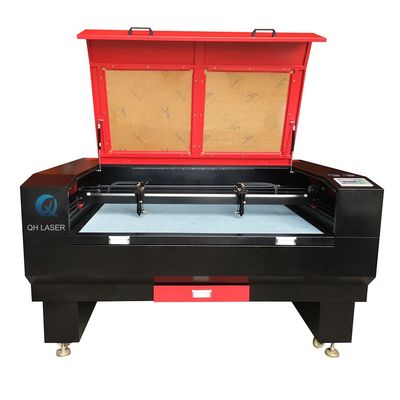

Dual Head CO2 Laser Cutting Machine 80w 100w 120w 130w 150w 0-18000mm/min

Dual Head Core Value: Supports synchronous/independent operation; cuts/engraves 2 workpieces at once (e.g., 100W dual heads process two 10-15mm acrylic sheets), boosting efficiency by 80%-100%.​

Key Specs: 1300×900mm area (fits dual-head simultaneous processing); 0.025mm resolution, ±0.01mm reset accuracy (ensures dual-head synchronization); 0-18000mm/min cutting speed, 0-64000mm/min engraving speed (per head).​

Dual-Head Compatibility: Taiwan linear rails (stable dual-head movement); industrial chiller (cools 2 laser tubes); Ruida control (independent parameter setting for each head); aluminum slot/honeycomb table (supports dual-head material placement).

Dual-Head Efficiency Boost: Compared to single-head models, the synchronous operation cuts batch processing time by nearly half—critical for high-volume orders (e.g., 500 acrylic signage pieces can be finished in ~12 hours vs. 24 hours with a single head). Independent operation also eliminates downtime from switching between tasks (e.g., one head engraves leather logos while the other cuts acrylic frames), maximizing workflow flexibility.​

Precise Dual-Head Synchronization: The Taiwan linear guide rails and Leadshine stepper motors ensure ±0.01mm reset accuracy for both heads, avoiding misalignment when processing identical workpieces. Even at maximum cutting speed (18000mm/min per head), dual heads maintain consistent 0.025mm resolution—enabling sharp 2mm Chinese characters and 1mm letters across both heads, ensuring uniform quality for batch products.​

Cost-Effective Versatility for Non-Metallics: The 10.6μm CO₂ wavelength (optimized for acrylic, wood, leather, paper) paired with dual heads lets users handle diverse orders without investing in multiple single-head machines. For example, a signage shop can process two different acrylic designs simultaneously, or a craft factory can engrave leather goods while cutting paper crafts—all with one machine, reducing equipment costs by 30%-40%.​

Hassle-Free Dual-Head Operation: The integrated industrial chiller is upgraded to cool two laser tubes (preventing overheating in dual-head use), while the exhaust fan efficiently removes fumes from two cutting areas. The Ruida system also allows separate parameter adjustment for each head (e.g., different speed for acrylic vs. leather), ensuring optimal results without extra setup.
