| Brand Name: | QiHai |
| Model Number: | QH-3015F |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |
High-Speed Core (1.5G Acceleration): 1.5G maximum linkage acceleration enables fast motion response, cutting idle time by 25%-30% vs. 1.0G machines; pairs with 100m/min speed for rapid batch processing.

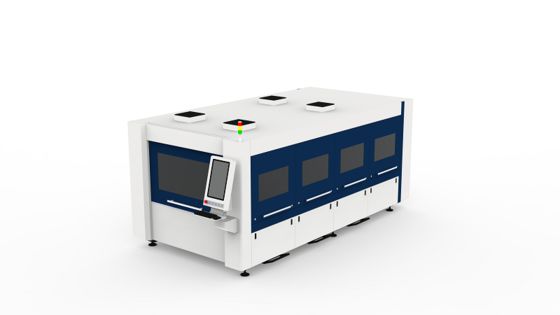

Key Specs: 3000×1500mm longitudinal single platform (800kg max loading), 1500W-20KW laser power, ±0.03mm axis precision (maintained at high speed), fully enclosed structure.
Fit: High-volume hardware/automotive parts manufacturing; 380V/50Hz for industrial integration.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1800kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
1.5G Acceleration Cuts Batch Processing Time Dramatically: The machine’s 1.5G maximum linkage acceleration allows it to quickly ramp up to 100m/min and adjust motion paths in milliseconds—critical for small-to-medium batch work. For example, processing 50 pieces of 3000×500mm stainless steel sheets (1mm thick) takes ~1.5 hours (vs. 2+ hours with 1.0G machines), as idle travel between cut features (e.g., holes, slots) is drastically reduced. This directly meets tight production schedules for high-volume orders.
High Speed Without Compromising Precision: Thanks to the double rack & pinion transmission with servo drive, the 1.5G high acceleration doesn’t sacrifice accuracy—X/Y-axis positioning and repositioning remain at ±0.03mm. Unlike low-grade machines that drift at high speed, the QH-3015FC maintains consistent cut quality (smooth edges, narrow kerfs) even during rapid direction changes, eliminating the need for post-cut finishing and reducing scrap rates by 20%-25%.

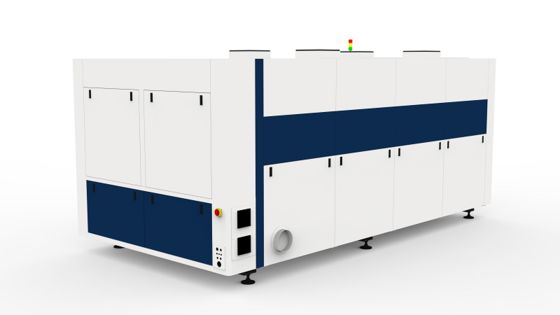

Fully Enclosed Structure Supports Safe High-Speed Operation: High-speed cutting generates more sparks and dust, but the fully enclosed design contains these hazards—preventing fire risks and protecting operators from noise (>85dB reduction). It also shields the transmission system from dust accumulation, which is critical for maintaining 1.5G acceleration performance long-term (reduces maintenance frequency by 40% vs. open-frame high-speed machines) and extending the machine’s service life.
Longitudinal Single Platform Optimizes High-Speed Workflow: The 3000×1500mm longitudinal single platform is tailored for long sheet metal (e.g., 3m-long automotive trim parts), allowing continuous high-speed cutting without workpiece repositioning. Its 800kg loading capacity handles thick long sheets (up to 25mm) while staying compact (4800×2350×1900mm)—saving workshop space vs. multi-platform machines and ensuring seamless integration into high-speed production lines.
