1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine

Name: 1500W-20000W Sheet And Tube Laser Cutting Machine Sheet Metal Laser Cutting Machine
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-3015FT
Price: negotiable USD
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-3015FT
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	90set/mon

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Product:

Sheet Metal Laser Cutting Machine

Processing Area:

3000 * 1500mm/6m Max. Length 120mm Diameter Of Chuck

Laser Power:

1500W-20000W

X/Y-axis Positioning Accuracy:

0.03mm

Frequency:

50Hz

Voltage:

380V

Laser Generator Classification:

Fiber Laser Generator

Transmission:

Double Rack&pinion Transmission And Servo Drive

Working Environment:

0-40℃, Humidity ≤80%

Graphic Format:

PLT, DXF

Packaging Details:

wooden box

Product Description

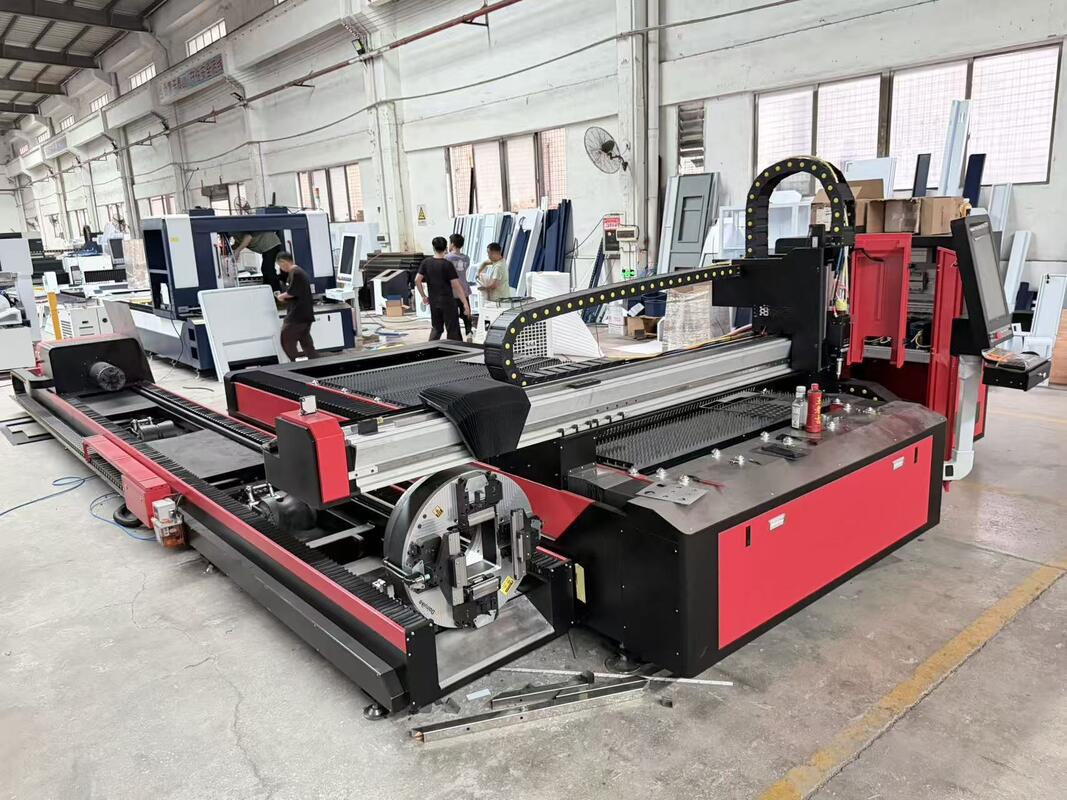

QH - 3015FT Sheet and Tube Laser Cutting Machine

Description

The QH-3015FT is a multifunctional integrated sheet and tube laser cutting machine that combines flat sheet metal cutting and professional tube cutting functions in a single unit, breaking the functional limitation of single-purpose laser equipment. It serves as an all-in-one laser processing solution for diversified metal fabrication, perfectly catering to manufacturers requiring both plate and tubular component production. Adopting an integrated dual-process structural design, the machine supports flexible switching between sheet cutting and tube cutting modes without equipment replacement or tedious refitting.

Quick Detail

* Laser Power: 1.5–20 kW
* Sheet Processing Area: 3000 × 1500 mm
* Maximum Tube Length: 6 m
* Chuck Diameter: 120 mm
* Maximum Loading Weight: 800 kg
* X/Y Positioning Accuracy: ±0.03 mm
* X/Y Repositioning Accuracy: ±0.03 mm
* Maximum Linkage Speed: 100 m/min
* Maximum Linkage Acceleration: 1.0 G
* Transmission: Double rack & pinion transmission with servo drive
* Bevel Cutting: Available
* Machine Weight: 2500 kg
* Overall Dimensions: 8450 × 3250 × 1900 mm
* Power Supply: 380 V / 50 Hz

For tube processing, the machine is professionally configured with a dedicated tube cutting module, supporting a maximum tube length of 6m and a chuck clamping range of 90–250mm, covering most common industrial round and square tube specifications. Matched with an ultra-wide 1500W–20KW adjustable laser power range compatible for both plate and tube materials, it delivers smooth, burr-free cutting results for various carbon steel, stainless steel, and aluminum workpieces. With compact overall dimensions of 8450×3250×1900mm and standard 380V/50Hz industrial voltage adaptation, the QH-3015FT realizes unified, stable, and efficient batch processing of both sheets and tubes in one compact workstation.

Technical Specifications

Processing Area	3000 * 1500mm
Maximum Loading Weight	800kg
Machine Weight	2500kg
Overall Dimensions	8450×3250×1900mm
Laser Power Range	1500W - 20KW
X/Y-axis Positioning Accuracy	±0.03mm
X/Y-axis Repositioning Accuracy	±0.03mm
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Transmission System	Double rack & pinion transmission with servo drive
Voltage Requirement	380V
Frequency	50Hz

Advantage

① Dual-Function Integration Saves Cost and Workshop Space: As a professional sheet and tube integrated laser cutter, the QH-3015FT replaces two separate independent machines (sheet cutter and tube cutter). It eliminates redundant equipment investment, greatly reduces workshop space

② Flexible Mode Switching Improves Production Versatility: The machine supports free switching between sheet cutting and tube cutting modes, adapting to mixed production orders of flat metal plates and long tubular workpieces. It can handle conventional large-format sheet metal cutting as well as precision profiling, hole cutting, and end face forming for 6m-long tubes within 90–250mm diameter range, fully meeting multi-variety and flexible production demands and expanding processing coverage compared with single-function laser equipment.

③ Unified High-Power & High-Precision System Ensures Consistent Processing Quality: Equipped with a universal 1500W–20KW high-power laser source and ±0.03mm ultra-high positioning and repositioning accuracy, the machine maintains stable and uniform cutting quality for both sheets and tubes. The high-power laser guarantees smooth and burr-free cutting edges for thick plates and thick-walled tubes, while the high-speed servo transmission system ensures no precision deviation during frequent mode switching, realizing consistent high-standard finished product quality for dual-process production.

④ High Efficiency and Strong Stability Support Continuous Batch Production: With 100m/min maximum linkage speed and 1.0G high acceleration, the machine delivers high-efficiency processing for both sheet and tube workpieces. The 2500kg rigid machine body and optimized transmission structure effectively resist vibration during long-term dual-mode operation, ensuring stable continuous production. It avoids frequent downtime caused by equipment replacement or debugging, greatly improving overall production efficiency and equipment utilization for mixed sheet and tube production lines.
