| Brand Name: | QIHAI |
| Model Number: | QH-3015FA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

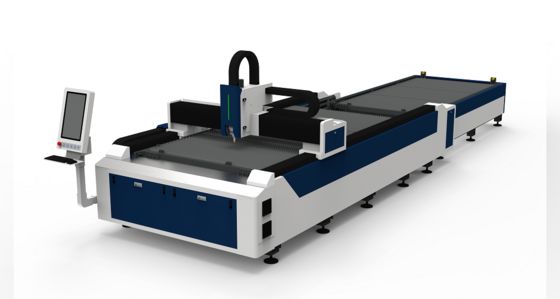

Dual-Platform Core: Two 3000×1500mm stations enable parallel load/cut, reducing batch downtime by 40%-50% vs. single-platform models.
Open-Type Advantage: Unobstructed access simplifies handling 1000kg heavy workpieces and cleaning/calibrating the cutting area.
Key Specs: 1500W-20KW laser power (0.5-30mm thickness), ±0.03mm axis precision, 100m/min speed, double rack & pinion transmission.
Fit: Batch automotive/steel structure production; 380V industrial power compatibility.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3000kg |
| Overall Dimensions | 8770×2300×2000mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Dual-Platform Parallel Operation Boosts Batch Efficiency: Unlike single-platform machines that pause for 15-20 minutes per batch to load/unload, the QH-3015FA’s dual stations let operators prep the next set of workpieces (e.g., 3000×1500mm steel plates) while cutting is in progress. For a 50-piece batch of 10mm stainless steel sheets, total production time drops from 4 hours (single-platform) to 2.5 hours, directly 提升 throughput by 37.5%.
Open-Type Structure Enhances Practicality for Heavy Loads: The open frame eliminates enclosure barriers, allowing forklifts or hoists to safely place 1000kg heavy workpieces onto either platform—avoiding the size/weight limitations of enclosed machines. It also enables on-the-fly adjustments for irregularly shaped parts (e.g., custom steel frames) and easy removal of cutting debris, reducing maintenance time by 25% and lowering the risk of downtime from blocked access.
Dual-Platform Stability Meets High Precision: The machine’s 3000kg sturdy frame and double rack & pinion servo transmission ensure that dual-platform switching does not compromise ±0.03mm positioning accuracy. Even when alternating between thin (0.5mm aluminum) and thick (30mm carbon steel) workpieces on separate platforms, consistent cutting quality is maintained—critical for industries where batch uniformity is non-negotiable.
Open Design + Flexible Power Adapt to Diverse Tasks: The open structure pairs with the 1500W-20KW laser power range to handle both delicate micro-cutting (1500W for 0.5mm sheets) and heavy-duty thick-plate cutting (20KW for 30mm steel) on either platform. Operators can dedicate one platform to high-speed thin-sheet batches and the other to slow-speed thick-plate jobs, optimizing workflow without sacrificing the accessibility of the open design.
