| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

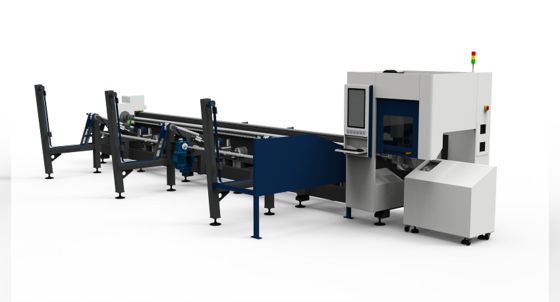

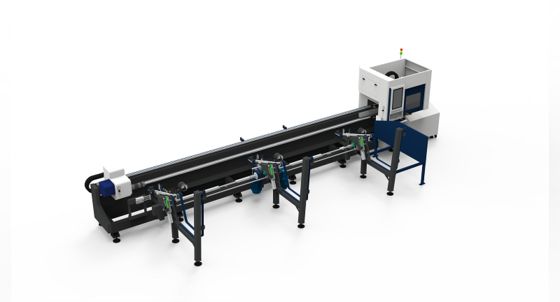

Triple Core Features: Fully-Automatic Loading (auto feed/clamp 5500-6500mm tubes, 60% faster than manual); Automatic Obstacle Avoidance (0.1s hazard detection, collision prevention); Follow-up Support (on-site install, 24/7 tech help, spare parts).
Key Specs: Model QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes; ±0.03mm axis precision; 1500W-20KW laser power; side-mounted chuck, 1.8T weight.
Fit: Medium-batch tube processing (construction/automotive); industrial-grade efficiency & safety.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Fully-Automatic Loading Cuts Labor & Boosts Consistency: The auto-loading system handles 5500-6500mm long tubes without manual lifting/positioning—reducing labor costs by 30%-40% for 2-shift operations. It also ensures uniform tube clamping force via the side-mounted chuck, avoiding beveling errors caused by manual misalignment and improving cut consistency by 25%.
Automatic Obstacle Avoidance Maximizes Uptime & Safety: By detecting hazards in 0.1 seconds and pausing operation, the system prevents laser head damage (a common costly issue with standard cutters) and reduces equipment repair downtime by 70%. It also eliminates safety risks like flying debris from collisions, aligning with strict workshop safety standards.
Follow-up Support Ensures Long-Term Reliability: Unlike basic machines with limited after-sales, the comprehensive Follow-up Support includes on-site installation to optimize machine layout, customized operator training to minimize operational mistakes, and 24/7 technical support to resolve issues (e.g., loading system calibration) within hours—reducing unplanned downtime by 50% and extending machine service life by 3-5 years.
Synergy of Features Enhances Batch Efficiency: For medium-batch production (50+ tubes/shift), the combination of auto-loading (fast tube changeover), obstacle avoidance (no collision delays), and follow-up support (no prolonged breakdowns) shortens overall processing cycles by 45% vs. semi-automatic cutters. Paired with ±0.03mm precision, it also ensures each tube meets weld-ready bevel standards, eliminating rework.
