| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

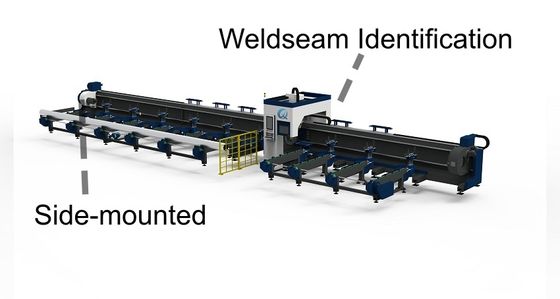

Triple Core Features: 3-chucks (even clamping, Φ15-500mm/15×15-500×500mm tubes); Weldseam Identification (auto-detects seams, avoids errors); Side-mounted Lathe (stable 5500-6500mm long-tube handling, space-saving).
Key Specs: 1500W-20KW laser power; ±0.03mm dual-axis accuracy; 6T weight (vibration dampening); 16680×5480×2250mm dimensions.
Fit: Batch tube cutting (construction/automotive); standard 380V/50Hz workshops, no custom setup.
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chucks + Side-mounted Lathe = Unmatched Long-Tube Stability: The 3-chucks evenly clamp tubes of Φ15-500mm (round) and 15×15-500×500mm (square), while the Side-mounted Lathe’s lateral alignment eliminates sagging for 5500-6500mm long tubes—critical for maintaining ±0.03mm precision across the entire tube length. This reduces bevel taper (common in vertical lathes) by 40% and cuts weld joint rework rates by 35%, as tubes remain stable even during high-power (20KW) thick-walled cutting.
Weldseam Identification Cuts Errors & Saves Time: The auto-seam-detection system eliminates manual weld seam marking (a 5-10 minute per-tube step in traditional processing) and adjusts cutting paths to avoid seam interference—ensuring no defective cuts from misaligned seams. For batch production (e.g., 100+ automotive frame tubes), this saves 8-16 hours of labor and reduces scrap rates by 25%, a key efficiency booster for high-volume tasks.
Standard Model Versatility with Specialized Performance: As a Standard Model, it fits common workshop setups (no custom infrastructure) and supports mainstream tube sizes, while the 3-chucks/Side-mounted Lathe/Weldseam trio delivers specialized precision. The 1500W-20KW laser power adapts to thin (0.5mm aluminum) and thick (20mm carbon steel) tubes, avoiding the need for multiple machines. Its 6T robust build ensures durability for 24/7 operation, making it a cost-effective solution that balances versatility, precision, and industrial reliability.
