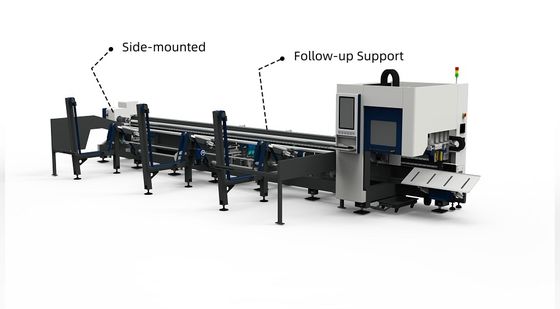

QH-GZ Zero-tailing Laser Tube Cutting Machine Side-mounted Lathe Follow-up Support

Follow-up Support Ensures Precision for Large/Long Tubes: The side-mounted lathe follow-up support dynamically adjusts to tube size and length, eliminating deflection in large-diameter tubes (e.g., Φ500mm round tubes) or long tubes (6500mm) during high-speed cutting. When paired with ±0.03mm axis accuracy, this ensures uniform cut edges and consistent hole/slot positioning—reducing rework rates by 40%-50% compared to machines without follow-up support, where tube vibration causes uneven cuts.​

Zero-tailing + Follow-up Synergy Cuts Material Costs: The zero-tailing feature’s ≤5mm residual waste is only effective if tubes stay stable during the final cut (avoiding uneven residual lengths). The follow-up support maintains tube alignment until the last cut, ensuring every tube meets the ≤5mm scrap standard. For a workshop processing 300 6500mm-long stainless steel tubes (Φ300mm) monthly, this saves ~380kg of material annually—lowering raw material costs by 10%-14%.​

Efficient Processing via Stable, Waste-Free Design: The follow-up support eliminates time-consuming manual tube adjustment or additional clamping (common for long/large-diameter tubes), cutting setup time per batch by 25%-30%. Combined with the 1500W-20KW laser’s one-pass cutting capability and zero-tailing’s no-secondary-trimming need, the machine boosts daily throughput by 35%-45% vs. traditional cutters with separate stabilization steps.​

Broad Tube Compatibility with Consistent Performance: The follow-up support and zero-tailing technology work seamlessly across both round (Φ15-500mm) and square (15×15-500×500mm) tubes. Whether cutting small Φ15mm hydraulic tubes or large 500×500mm structural square tubes, the support system maintains stability, and zero-tailing reduces waste—eliminating the need for specialized machines for different tube types and maximizing equipment utility.
