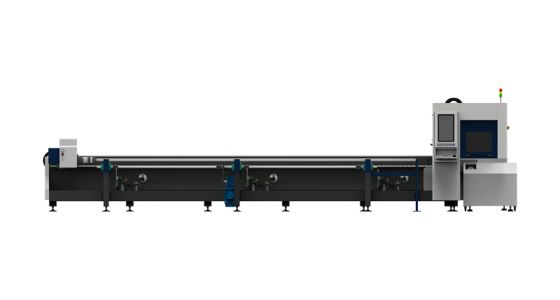

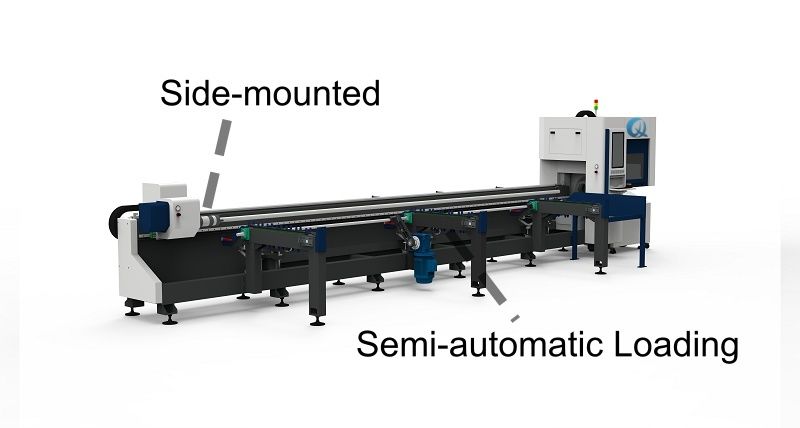

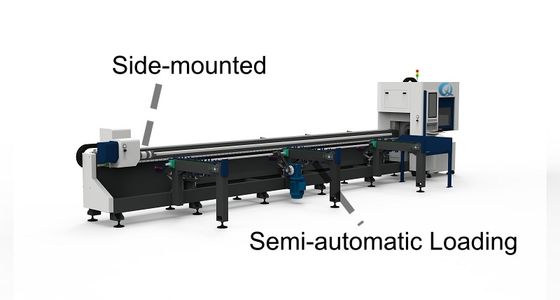

Side Mounted Lathe Tube Cutting Machines Semi Automatic Loading 1500W-20KW

Semi-automatic Loading Core: Manual tube positioning + auto clamp/align/cut/unload (balances control & efficiency); ideal for custom batches/irregular tubes.​

Shared & Variant Specs: Round Φ15-500mm/square 15×15-500×500mm tubes (5500-6500mm length, ±0.03mm accuracy); QH-GZ: 6000W-20KW/2T/9620×2950×2080mm (heavy tubes); QH-GS-6012:1500W-20KW/1.7T/8500×1380×2050mm (compact spaces).​

Fit: Small-medium batches, custom tube processing; side-mounted lathe + semi-auto loading reduces manual labor vs. fully manual machines.

Controlled Flexibility for Custom Batches: Unlike fully automatic loaders that require complex programming for small/bespoke batches, the semi-automatic system lets operators adjust tube positioning in real time—critical for irregular tubes (e.g., slightly bent carbon steel pipes) or one-off custom cuts. For a batch of 20 mixed-diameter round tubes (Φ50-300mm), it cuts setup time by 30% vs. fully automatic machines, as no pre-programmed feeding parameters are needed.​

Cost-Effective Heavy Tube Handling (QH-GZ): QH-GZ’s semi-automatic loading avoids the high cost of fully automated heavy-duty loaders (which add 40%-50% to equipment price) while still supporting 150kg/m thick-wall tubes. Operators provide light manual guidance to position heavy tubes on reinforced side rails, then the machine takes over clamping/cutting—reducing labor intensity by 60% vs. fully manual setups and lowering upfront investment.​

Compact-Space Adaptability (QH-GS-6012): Its streamlined semi-automatic loading (no bulky automated conveyors) fits workshops with 9m-length limits (vs. fully automatic machines requiring 10m+). The ergonomic side rails let operators easily load 6500mm tubes in tight spaces, and the 1500W-20KW power range adapts to thin (0.5mm) to thick (20mm) tubes—all while maintaining ±0.03mm accuracy, a balance fully compact automatic machines struggle to achieve.​

Precision with Manual Calibration Backup: The semi-automatic system’s laser-guided alignment works with operator manual adjustments to correct minor tube misalignments (common in fully manual setups). This “human-machine collaboration” ensures ±0.03mm cutting accuracy, reducing scrap rates by 25% vs. fully manual machines. For high-tolerance applications (e.g., pipeline joints), operators can fine-tune positioning mid-batch, a capability fully automatic systems lack without reprogramming.
