| Brand Name: | QiHai |
| Model Number: | QH-3015FC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 90set/mon |
High Speed Core: 100m/min maximum linkage speed + 1.5G acceleration, cutting batch processing time by 35%-50% vs. standard machines; ±0.03mm precision retained at high speed.
Key Specs: 3000×1500mm processing area (800kg max loading), 1500W-20KW laser power, double rack & pinion servo transmission.

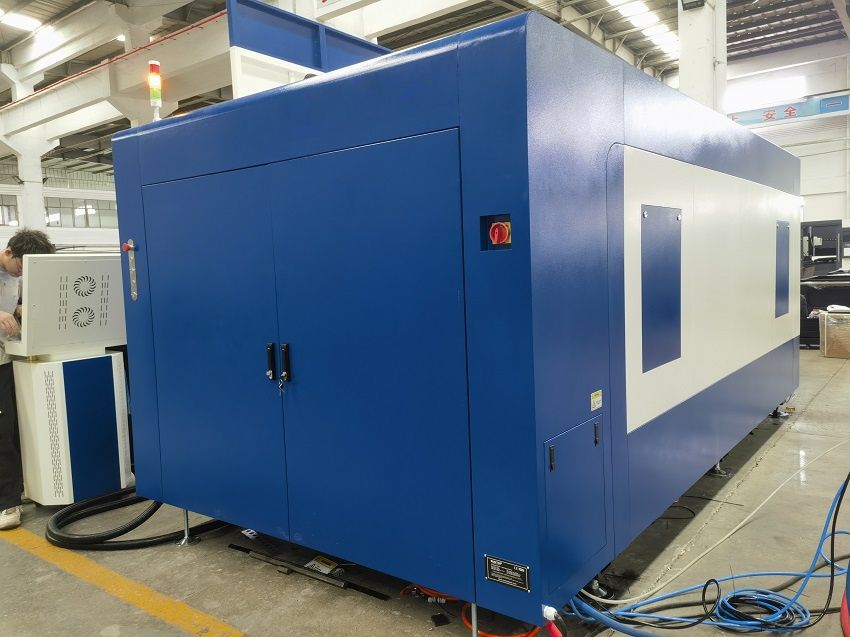

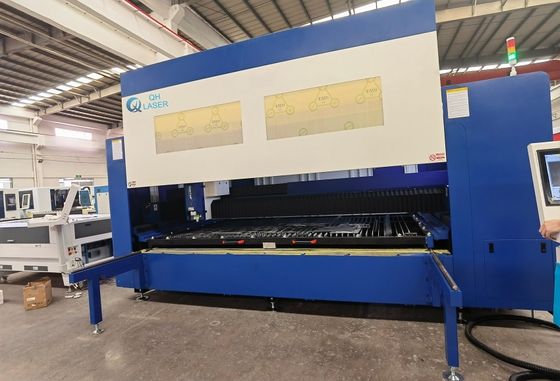

Design & Safety: Single-platform for easy loading/unloading; fully enclosed structure (laser safety + low noise) for workshop use.
Application Fit: Automotive parts, hardware batch production; 380V/50Hz for industrial continuous workflows.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 800kg |
| Machine Weight | 1800kg |
| Overall Dimensions | 4800 * 2350 * 1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Unmatched Batch Processing Speed: With 100m/min linkage speed and 1.5G acceleration, the QH-3015FC drastically reduces cycle time for high-volume tasks—for example, cutting 500 pieces of 300×200mm stainless steel sheets (1mm thick) takes just 40-45 minutes, compared to 65-70 minutes with standard 60m/min machines. This directly boosts daily output by 35%+, critical for meeting tight production deadlines in mass manufacturing.
High Speed Without Precision Loss: The double rack & pinion servo transmission minimizes backlash and ensures stable motion even at maximum speed, allowing the machine to maintain ±0.03mm axis accuracy. Unlike low-end high-speed cutters that sacrifice precision for speed, it avoids post-cut rework (e.g., trimming uneven edges), further saving time and reducing scrap rates by 20%-25%.
Fully Enclosed Safety for High-Speed Operation: High-speed cutting often increases risks of debris splatter or laser exposure, but the fully enclosed structure eliminates these hazards—meeting international laser safety standards (e.g., Class IV protection). It also reduces cutting noise by 15-20dB, creating a safer, more comfortable workshop environment for operators working alongside continuous high-speed production.
Single Platform Efficiency for Fast Batch Transitions: The single-platform design simplifies loading/unloading of 800kg workpieces (e.g., large sheet stacks), with no complex dual-table switching delays. This ensures minimal downtime between batches—when paired with 100m/min cutting speed, it achieves a total equipment efficiency (TEE) of over 85%, outperforming dual-platform machines that may have longer transition times in high-volume scenarios.
