| Brand Name: | QIHAI |
| Model Number: | QH-GZ |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

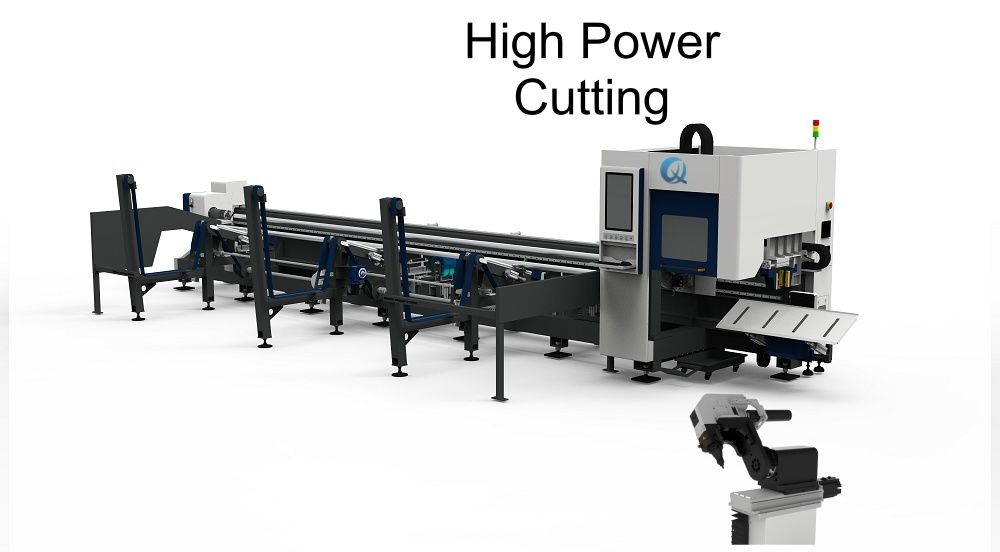

Dual Core Advantages: 6000W-20KW high power (cuts 25mm thick-walled tubes); Zero-tailing tech (≤5mm residual length, minimal scrap).
Key Specs: Φ15-500mm round/15×15-500×500mm square tubes; 5500-6500mm tube length; ±0.03mm X/Y precision.
Fit: Automotive/hydraulic industries; 2T weight + 9620×2950×2080mm size suits medium workshop spaces.
| Model | QH-GZ |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 2T |
| Dimensions (L*W*H) | 9620*2950*2080mm |
| Laser Power Range | 6000W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
High Power Boosts Thick-Walled Tube Efficiency: The 6000W-20KW power range delivers sufficient energy to cut 25mm thick carbon steel or stainless steel tubes in one pass, avoiding the time-consuming multi-pass cutting required by lower-power machines. This reduces processing time for a 6500mm-long, 500×500mm square tube (20mm wall) by 35%-45%, directly improving batch production throughput.
Zero-tailing Slashes Material Waste & Costs: Unlike traditional tube cutters that leave 50-100mm residual tails, the QH-GZ’s Zero-tailing design limits scrap to ≤5mm per tube. For a workshop processing 100 6500mm-long stainless steel tubes (Φ300mm) monthly, this saves ~150kg of high-value material annually—cutting raw material costs by 8%-12%.
High Power + Precision Ensures Consistent Quality: The combination of 6000W-20KW power and ±0.03mm positioning accuracy ensures uniform cut edges (no jaggedness or uneven walls) across thick-walled tubes. This is critical for hydraulic or structural tubes, where poor cut quality can cause leakage or load-bearing failures, reducing post-processing (e.g., grinding) by 60% and lowering rework rates.
Dual Tube Type Compatibility with Core Advantages: The machine maintains both high-power cutting performance and Zero-tailing efficiency across round (Φ15-500mm) and square (15×15-500×500mm) tubes. This eliminates the need for separate machines for different tube shapes, while the 5500-6500mm length capacity covers most industrial tube sizes—maximizing equipment utility and reducing upfront investment.
