| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

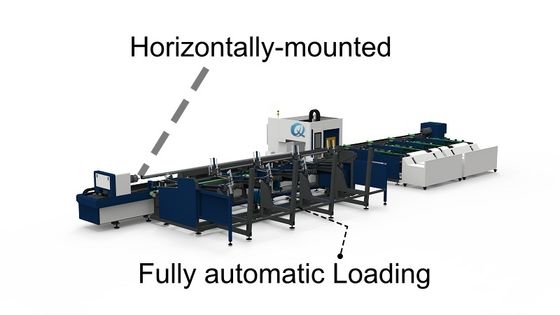

Triple Core Advantages: 3-chuck clamping (no deformation); Horizontally-mounted Lathe (prevents 5500-6500mm tube sagging); Fully-automatic Loading (90% less manual work).
Key Specs: Φ15-500mm round/15×15-500×500mm square tubes; 5500-6500mm length capacity; 6000W-20KW power; ±0.03mm dual-axis accuracy.
Efficiency & Fit: Auto-loading cuts batch time by 30%; ideal for pipelines/heavy machinery; 380V/50Hz industrial compatibility (implied for workshop integration).
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck + Horizontal Lathe = Uncompromised Long-Tube Precision: The 3-chuck system’s even clamping fixes tubes firmly, while the Horizontally-mounted Lathe dynamically supports 5500-6500mm tubes to avoid sagging—especially critical for Φ400-500mm round or 500×500mm square tubes, where sagging causes ±0.1mm+ deviation. Together, they maintain ±0.03mm precision across the entire tube length, slashing scrap rates by 40% vs. machines lacking follow-up support and ensuring weld joint alignment for pressure pipelines.

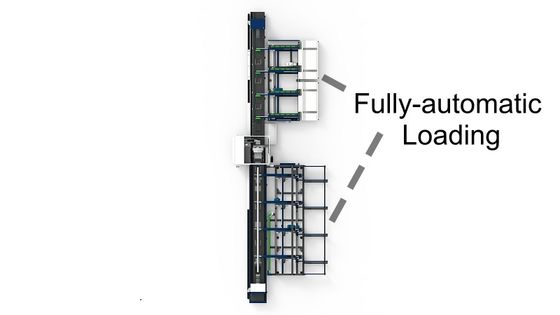

Fully-automatic Loading Drives Batch Efficiency: Unlike manual loading (which takes 2-3 minutes per 6m tube), the auto-loading system completes feeding/alignment/unloading in 30 seconds per tube—saving 1.5-2.5 minutes per part. For a batch of 100 tubes, this cuts total processing time by 4+ hours. It also eliminates human error (e.g., misalignment from manual handling), further boosting consistent quality and reducing labor costs for 24/7 production runs.
Triple-Feature Synergy Reduces Total Cost of Ownership: The 3-chuck + horizontal lathe combo handles specialized long/heavy tubes (no need for custom fixtures), while fully-auto loading removes the need for dedicated operators. This means one machine replaces “basic cutter + manual loaders + secondary straightening tools”—lowering equipment and labor costs by 50% vs. fragmented setups. Additionally, the standard model’s compatibility with off-the-shelf tube sizes (Φ15-500mm/15×15-500×500mm) avoids custom modification fees, making it a cost-effective choice for diverse industrial needs.
