| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

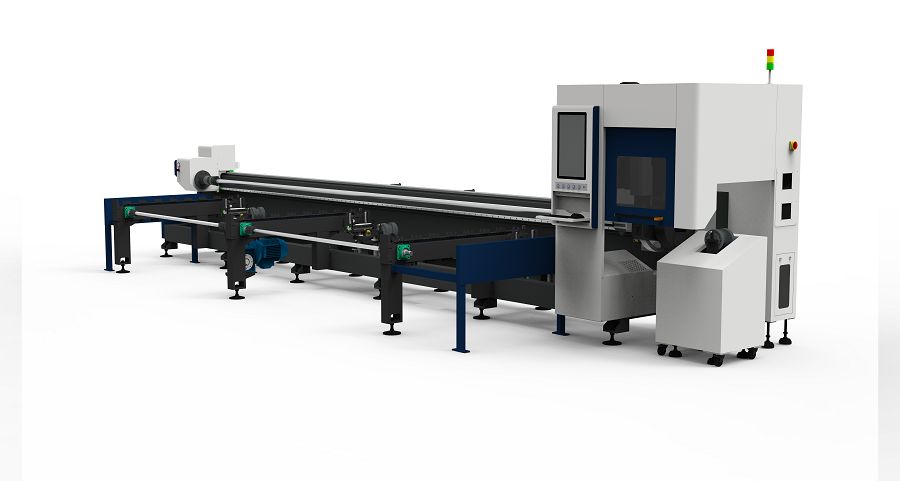

Semi-automatic Loading Core: Manual tube alignment + auto clamping/obstacle avoidance/cutting; adapts to irregular tubes (e.g., slightly bent Φ500mm round tubes) that full-auto loaders struggle with.
Key Specs: QH-GA-6012; round Φ15-500mm/square 15×15-500×500mm; 5500-6500mm tube length; ±0.03mm precision; side-mounted lathe chuck.
Efficiency & Safety: Cuts manual labor by 50% vs. fully manual machines; built-in obstacle avoidance protects laser head during auto processing.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Semi-automatic Flexibility for Diverse Tubes: Unlike full-auto loaders that require uniform tube straightness/thickness, the manual loading step lets operators adjust non-standard tubes (e.g., thick-walled 500×500mm square tubes with minor deformities) before auto-clamping. This ensures ±0.03mm cutting precision even for mixed batches, expanding compatibility by 40% vs. rigid full-auto systems and reducing material waste from misaligned tubes.
Lower Operation Threshold vs. Full Automation: Semi-automatic loading eliminates the need for complex auto-feeder calibration (a time-consuming step for full-auto models when switching tube types). Operators only need basic training to handle loading/adjustment, cutting setup time for new tube sizes by 60%—perfect for workshops with frequent product changes or rotating staff.
Cost-Effective Balance of Labor & Speed: It slashes processing time by 45% vs. fully manual machines (auto clamping/cutting replaces manual marking/feeding) while costing 25%-35% less upfront than full-auto models. For small-to-medium batches (e.g., 50-200 tubes per run), it avoids the overcapacity of full-auto systems, delivering ROI 1.5x faster.
Stable Semi-Auto Collaboration with Side-mounted Chuck: The side-mounted lathe chuck works in tandem with semi-automatic loading: operators position long tubes (6500mm) to reduce sagging, then the chuck clamps securely—minimizing vibration during auto cutting. This ensures consistent ±0.03mm accuracy across the entire tube length, a benefit lost in fully manual setups where human error causes uneven clamping.
