| Brand Name: | QIHAI |
| Model Number: | QH-6025F |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

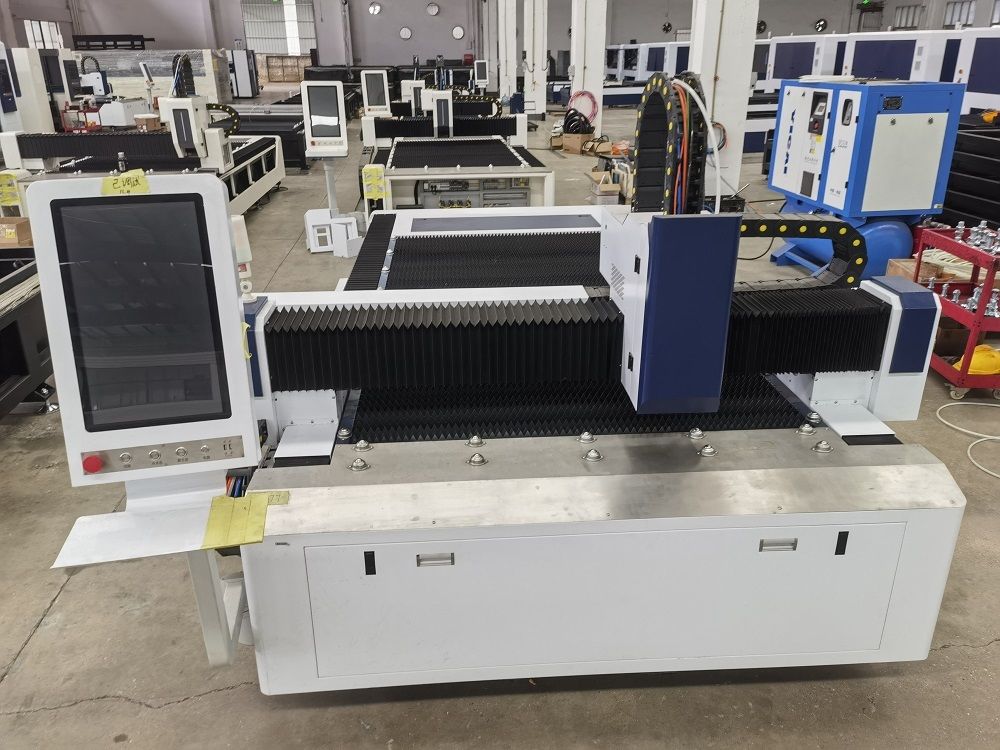

High-Speed Core: 1.5G maximum linkage acceleration + 100m/min linkage speed—cuts large-workpiece processing time by 35%-45% vs. standard 1.0G machines.
Key Specs: 6000×2500mm processing area (1000kg max loading), 1500W-20KW laser power (0.5-25mm thickness), ±0.03mm axis precision (maintained at high speed).
Stability Support: Double rack & pinion servo transmission + 3700kg frame—ensures no vibration/shifting during 1.5G acceleration.
Fit: Heavy machinery/steel structure batch production; 380V/50Hz industrial use for high-throughput needs.
| Processing Area | 6000 * 2500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3700kg |
| Overall Dimensions | 8000×2960×1900mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.5G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
1.5G Acceleration Drives Dramatic Efficiency Gains: The machine’s 1.5G maximum linkage acceleration enables rapid start-stop and speed adjustment—for example, cutting a 6m×2.5m carbon steel plate (10mm thick) takes only 6-8 minutes, vs. 10-12 minutes with 1.0G cutters. This reduces per-workpiece processing time by 35%+, directly boosting daily output for high-volume production lines (e.g., 20% more steel structure components per shift).
High Speed Without Precision Compromise: Unlike low-end high-speed cutters that lose accuracy at maximum acceleration, the QH-6025F’s double rack & pinion servo transmission and 3700kg vibration-dampening frame keep X/Y-axis precision at ±0.03mm even during 1.5G motion. This eliminates post-cut calibration or grinding (common with imprecise high-speed cuts), reducing secondary processing time by 50%+.
Optimized for Large-Format High-Speed Workflows: Its 6000×2500mm large processing area paired with 1.5G acceleration minimizes "dead time" (empty traversal between cuts). For example, moving from one end of a 6m-long workpiece to the other takes just 0.8 seconds (vs. 1.2 seconds with 1.0G acceleration), adding up to 15% faster overall cycle times for multi-feature large sheets.
Stable High-Speed Cutting Under Load: With a 1000kg maximum loading capacity, the machine maintains 1.5G acceleration even when handling heavy thick plates (e.g., 20mm carbon steel sheets). This avoids speed reductions for high-weight workpieces—critical for heavy machinery manufacturing, where thick, large components often require both high speed and high load capacity to meet production deadlines.
