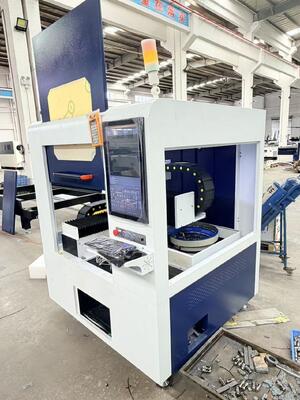

QH - Automatic Vibratory Bowl Loading Full-Closed-Loop Automated Precision Processing with Laser Cutting

QH - Automatic Vibratory Bowl Loading Full-Closed-Loop Automated Precision Processing with Laser Cutting

Brand Name:	QIHAI
Model Number:	QH - 8025FD
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

ISO, CE

Graphic Format Supported:

DXF,AI,BMP,PLT,DWG

Cnc Or Not:

Yes

Cooling Mode:

Water Cooling

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Cooling System:

Water Cooling,CW5200 Waterchiller,Industry Water Chiller

Packaging Details:

wood, plastic

Highlight:

automatic vibratory bowl loading machine

fiber laser metal cutting machine with warranty

closed-loop automated precision laser cutter

Product Description

QH - Automatic Vibratory Bowl Loading Full-Closed-Loop Automated Precision Processing with Laser Cutting

Description

The Vibratory Bowl Automatic Feeder is an intelligent, high-efficiency feeding equipment, with three core advantages: multi-specification quick switching, modular customization, and full-process integration of feeding, positioning, cutting and sorting, designed to achieve cost reduction, efficiency improvement and minimize manual intervention for large-scale mass production scenarios. It is widely applicable to large-batch sheet metal processing, precision component cutting and other mass production scenarios that require stable, efficient and standardized feeding, perfectly matching laser cutting systems with a laser power range of 1500W-20KW. This feeder breaks through the limitations of traditional vibratory feeders—poor compatibility with multiple specifications, difficulty in customization, and single feeding function—integrating intelligent vibration technology, modular design and full-process linkage, realizing seamless connection with laser cutting systems, reducing human operation errors, and improving comprehensive production efficiency by 3-5 times compared with traditional manual cutting and feeding.

Its core highlights are fully reflected in its integrated design and efficient performance: the feeder supports multi-specification quick switching, which can flexibly adapt to workpieces of different sizes and models without complicated disassembly and adjustment, greatly reducing the switching time between different production batches. The modular customization function allows enterprises to customize the vibratory bowl, feeding track and control system according to their actual production needs, enhancing the adaptability to diverse production scenarios. Most importantly, it integrates the whole process of feeding, positioning, cutting and sorting—after the vibratory bowl automatically sorts and conveys workpieces, it accurately positions them, cooperates with the laser cutting machine (matching 100m/min maximum linkage speed and 1.0G maximum linkage acceleration) to complete cutting, and then sorts the finished products, realizing a fully automated workflow with minimal manual intervention.

Quick details

Core Highlights: Multi-specification quick switching (flexible adaptation to different workpieces, no complicated adjustment); modular customization (customizable according to production needs); full-process integration (feeding, positioning, cutting, sorting integrated, minimal manual intervention); cost reduction & efficiency improvement (comprehensive production efficiency 3-5 times higher than traditional manual cutting).

Key Specifications: Top bowl diameter 460mm (large capacity for continuous feeding); machine weight 1000kg; overall dimensions 19680×3958×2560mm (seamless integration with laser cutting machines); laser power compatibility range 1500W-20KW.

Speed & Performance: 100m/min maximum linkage speed, 1.0G maximum linkage acceleration (synchronized with laser cutting); stable vibration feeding, no jamming.

Technical Specifications

Diameter of top bowl	460mm
Machine Weight	1T
Overall Dimensions	1600×1430×1750mm
Laser Power Range	1500W - 20KW
Maximum Linkage Acceleration	1.0G
Maximum Linkage Speed	100m/min
Voltage Requirement	380V
Frequency	50Hz

Advantage

Multi-Spec Quick Switch & Modular Customization, Adapt to Diverse Mass Production: The feeder supports quick switching between different workpiece specifications, which can complete the switching in a short time without disassembling and replacing the whole equipment, effectively reducing the downtime between production batches and improving the flexibility of mass production. The modular customization function allows targeted design according to workpiece size, material and production process, solving the problem of poor compatibility of traditional feeders, and meeting the personalized needs of different enterprises for large-scale production.

Full-Process Integration Reduces Manual Intervention & Human Errors: Integrating feeding, positioning, cutting and sorting into one seamless workflow, the feeder completely replaces manual operations such as manual feeding, positioning and sorting, reducing manual intervention to the minimum. This not only saves a lot of labor costs but also avoids cutting defects and product quality deviations caused by human operation errors, greatly improving the qualification rate of finished products and ensuring the stability of batch production quality.

Cost Reduction & Efficiency Improvement, 3-5 Times Higher Production Efficiency: Compared with traditional manual cutting and feeding, the feeder’s automated full-process integration and high-speed feeding (matching 100m/min maximum linkage speed) make the comprehensive production efficiency increased by 3-5 times. The 460mm large-diameter top bowl ensures continuous feeding without frequent manual replenishment, reducing downtime and further improving production efficiency. At the same time, the stable operation and low maintenance frequency of the equipment reduce long-term operation costs, achieving dual benefits of cost reduction and efficiency improvement.

Stable Performance & Seamless Integration, Suitable for Large-Scale Mass Production: The feeder adopts intelligent vibration control technology, ensuring stable, smooth and orderly feeding, no jamming or deviation, and matching the 1500W-20KW laser power range and high-speed cutting rhythm of laser cutting machines. Its 1000kg sturdy structure and 19680×3958×2560mm dimensions enable seamless integration with industrial laser cutting production lines, adapting to 380V/50Hz standard industrial power supply, ensuring long-term continuous and stable operation, which is perfectly suitable for large-scale mass production scenarios requiring high efficiency, high stability and standardized processing.
