| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

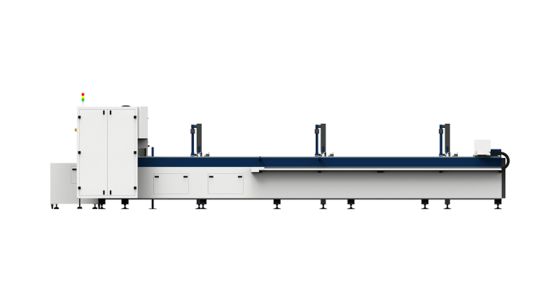

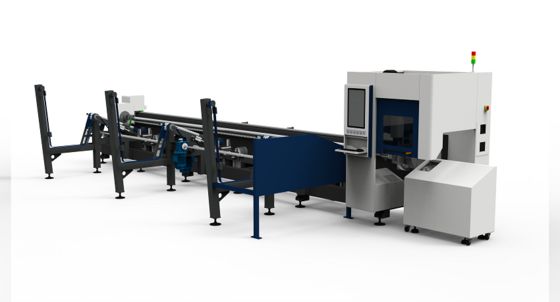

Triple Core Intelligent Features: Fully-automatic loading (feeds 5500-6500mm tubes, no manual lift); weldseam identification (±0.1mm accuracy, avoids weld defects); automatic obstacle avoidance (0.1s hazard response, collision prevention).
Key Specs: Model QH-GA-6012; Φ15-500mm round/15×15-500×500mm square tube capacity; ±0.03mm axis precision; 1500W-20KW laser power; 1.8T weight; 8500×2920×2050mm dimensions.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, high-quality cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Triple-Function Synergy Boosts Efficiency & Quality: The fully-automatic loading cuts batch preparation time by 35%-45% (vs. manual loading), the weldseam identification reduces cutting defects by 50% (avoiding scrap from weld zone cuts), and the automatic obstacle avoidance lowers equipment downtime by 60% (preventing collision-related repairs). Together, these features enable 60+ tubes processed per shift—2x the output of standard semi-automatic cutters—while maintaining ±0.03mm precision.
Weldseam Identification Ensures Consistent High Tolerance: Unlike standard machines that require manual weldseam marking (time-consuming and error-prone), the QH-GA-6012’s ±0.1mm-accurate weldseam detection automatically skips welds. This is critical for industries like automotive (where tube cut precision impacts frame assembly) and construction (where defective cuts risk structural safety), ensuring every tube meets strict quality standards without manual intervention.
Safety & Versatility Reduce Total Cost of Ownership: The automatic obstacle avoidance system protects high-value components (e.g., laser head, chuck) from collision damage—saving up to $5,000/year in repair costs. The fully-automatic loading eliminates labor costs for heavy tube handling, while compatibility with Φ15-500mm round and 15×15-500×500mm square tubes removes the need for separate machines for different tube types. This versatility, paired with safety features, lowers total ownership costs by 25%-30% over 3 years.
