| Brand Name: | QIHAI |
| Model Number: | QH-3015FA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

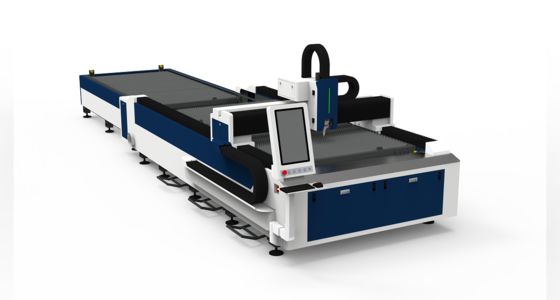

High Power Core: 6000W-20KW range; cuts 15-30mm thick plates in one pass, slashing thick-plate processing time by 50% vs. low-power models.
Key Specs: 3000×1500mm single platform (1000kg max loading), ±0.03mm axis precision (high-power stability), 100m/min speed, double rack & pinion transmission.
Open-Type Value: Simplifies heavy workpiece loading/unloading; reduces material handling downtime for high-power batch processing.
Fit: Heavy machinery/steel structures; 380V/50Hz for industrial high-power needs.
| Processing Area | 3000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3000kg |
| Overall Dimensions | 8770×2300×2000mm |
| Laser Power Range | 6000W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
High Power Enables Thick-Plate One-Pass Cutting: The 6000W-20KW power range eliminates the need for multi-pass cutting of thick plates—for example, 30mm carbon steel (a challenge for 3000W machines that require 3-4 passes) is cut in one pass at 8-12m/min, reducing processing time by 50%-60% and avoiding edge jaggedness from repeated heating. This ensures consistent weld joint quality for thick-plate applications.
Precision Retention Under High Power: Unlike many high-power machines that sacrifice accuracy for power, the QH-3015FA’s double rack & pinion servo transmission maintains ±0.03mm X/Y-axis precision even at 20KW cutting power. This is critical for large thick workpieces (e.g., 3m-long 25mm steel plates) where slight deviations would ruin part fitment, reducing scrap rates by 30%-35% compared to unstable high-power cutters.
Open-Type Single Platform Boosts High-Power Efficiency: The open structure and 1000kg load capacity let operators quickly load/unload heavy thick plates (e.g., 500kg 3000×1500×20mm stainless steel sheets) without space constraints—cutting material handling time by 25%-30%. Paired with 100m/min speed and 1.0G acceleration, it processes 10 pieces of 3000×1500×15mm carbon steel plates in ~2 hours, vs. 3.5+ hours with enclosed low-power machines.
High Power Versatility Across Materials: The 6000W-20KW range adapts to diverse thick-material needs: 6000W-10KW for precision cutting of 0.5-15mm aluminum (avoiding thermal deformation), 12KW-20KW for deep-penetration cutting of 15-30mm carbon steel. This eliminates the need for multiple machines for different thicknesses, lowering equipment costs while maintaining high-power processing consistency.
