| Brand Name: | QIHAI |
| Model Number: | QH-GZ |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

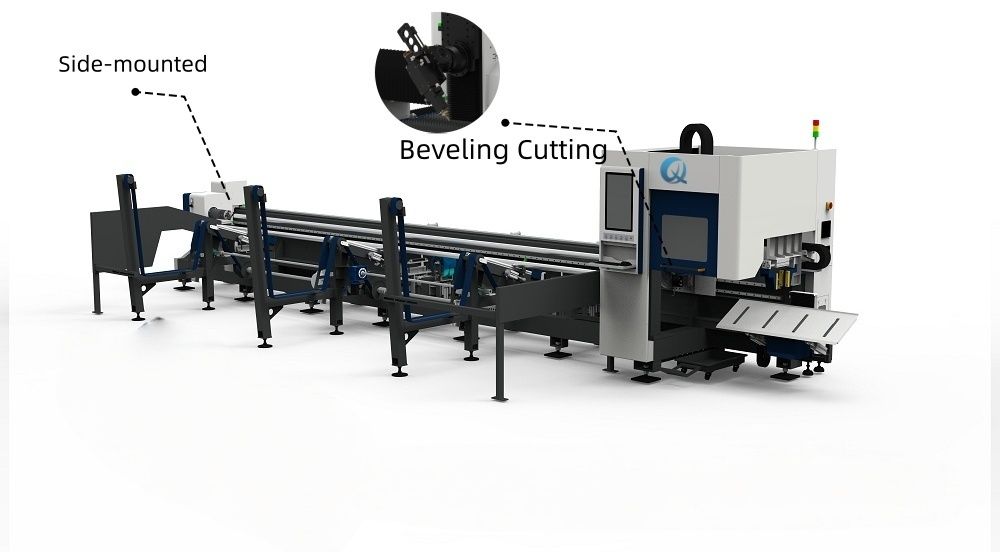

Side-mounted Beveling Core: ±45° adjustable bevel angle (±0.5° accuracy); supports V/U/single/double-sided bevels—cuts secondary processing time by 40%.
Key Specs: Fits Φ15-500mm round/15×15-500×500mm square tubes; 5500-6500mm tube length; 1500W-20KW laser power; ±0.03mm axis precision.
Added Value: Side-mounted structure stabilizes long-tube beveling; zero-tailing reduces waste; 2T frame (9620×2950×2080mm) for industrial durability.
| Model | QH-GZ |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 2T |
| Dimensions (L*W*H) | 9620*2950*2080mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
±45° Beveling Eliminates Secondary Work: Traditional tube beveling requires separate milling/grinding after cutting to achieve ±45° angles, which adds 2-3 hours per batch. The QH-GZ’s side-mounted beveling system completes cutting and ±45° beveling in one pass—for a batch of 50 6000mm×Φ300mm round tubes, this saves 100+ hours of processing time and reduces labor costs by 35%.
Stable Beveling for Long Tubes: The side-mounted design distributes clamping force evenly along 5500-6500mm tubes, preventing tube deformation during ±45° beveling (a common issue with top-mounted bevel systems). Combined with ±0.03mm axis precision, it maintains consistent bevel depth and angle across the entire tube length—critical for heavy machinery hydraulic pipelines, where uneven bevels cause weld leaks.
Versatile Beveling Across Tube Sizes: Unlike bevel machines limited to small-diameter tubes, the QH-GZ handles Φ15-500mm round/15×15-500×500mm square tubes with ±45° beveling. Low laser power (1500W-5KW) delivers precise bevels for small tubes (e.g., Φ15mm automotive fuel tubes), while high power (10KW-20KW) enables deep-penetration bevels for thick-wall large tubes (e.g., 500×500mm construction machinery structural tubes)—no need for multiple machines.
Cost Savings from Beveling + Zero-tailing: The integration of ±45° beveling and zero-tailing technology creates dual cost benefits: beveling eliminates secondary processing expenses, and zero-tailing reduces tube scrap (e.g., cutting 6500mm tubes leaves near-zero residual ends, vs. 100-150mm waste with standard machines). For monthly production of 200 6000mm tubes, this saves ~300kg of metal material and $2,000+ in secondary processing costs.
