| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

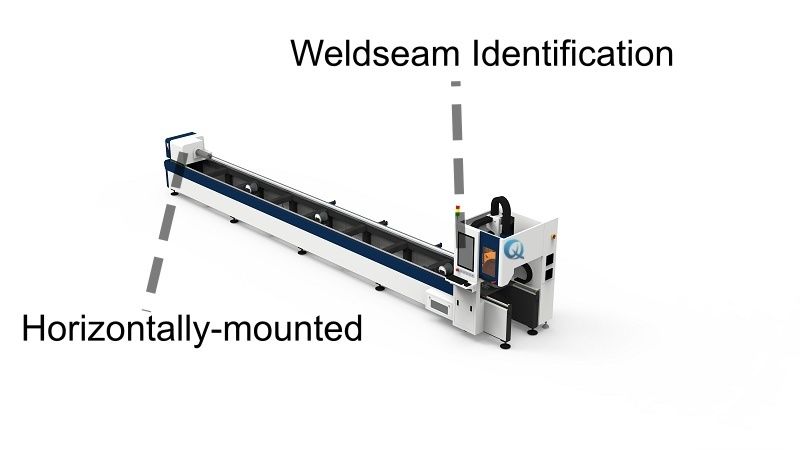

Triple Core Technologies: Horizontally-mounted lathe (side-mounted chuck) for stable 5500-6500mm tube clamping; Weldseam Identification (real-time weld detection, maintains ±0.03mm accuracy); Automatic Obstacle Avoidance (0.1s hazard response, collision prevention).
Key Specs: Model QH-GA-6012; cuts Φ15-500mm round/15×15-500×500mm square tubes; 1500W-20KW laser power; 1.8T weight; 8500×2920×2050mm dimensions.
Fit: Medium-large batch long-tube processing (construction/automotive); safe, precise cutting for thin-thick wall tubes.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Horizontally-mounted Lathe + Side-mounted Chuck = Unmatched Long-tube Stability: The horizontal structure eliminates sagging for 5500-6500mm long tubes (unlike vertical lathes that risk tube deformation), while the side-mounted chuck provides uniform clamping force for large-diameter tubes (up to Φ500mm). This stability ensures consistent ±0.03mm precision across the entire tube length, reducing scrap rates from misalignment by 30%-40%—critical for high-tolerance automotive frame tubes.
Weldseam Identification = Precision Without Compromise: Unlike standard tube cutters that ignore weldseams (leading to uneven cuts or tool wear), its real-time weld detection adjusts cutting parameters (speed, power) to match weld zone material properties. This retains ±0.03mm accuracy even for welded tubes, eliminating post-cut grinding and reducing processing time by 25%-35%—ideal for construction trusses where welded tubes are common.
Automatic Obstacle Avoidance = Safety + Equipment Longevity: The 0.1s fast-response hazard detection avoids costly collisions (e.g., laser head damage from misfed tubes, operator injury from debris). This reduces equipment downtime by 60% vs. non-avoidance models and lowers maintenance costs—paired with the lathe’s stability and weldseam function, it creates a “set-and-forget” workflow that boosts shift output by 20%-25% (processing 60+ tubes per shift).
