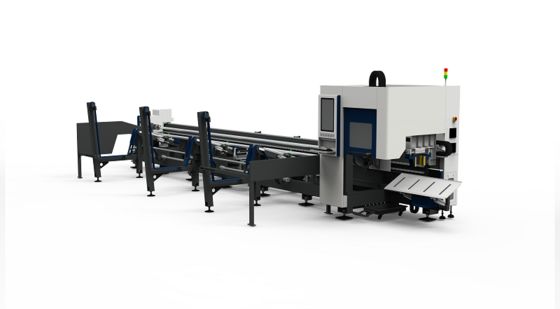

QH-GZ Zero-tailing Laser Tube Cutting Machine Side-mounted Lathe Fully-automatic Loading

Name: QH-GZ Zero-tailing Laser Tube Cutting Machine Side-mounted Lathe Fully-automatic Loading
Brand: Qihai Laser Tech. Co., Ltd.
SKU: QH-GZ
Availability: InStock

Brand Name:	QIHAI
Model Number:	QH-GZ
MOQ:	1 Set
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	100 Set/month

Detail Information

Product Description

Detail Information

Place of Origin:

Foshan, Guangdong, China

Certification:

CE, ISO

Condition:

New

Cnc Or Not:

Yes

Graphic Format Supported:

PLT,DXF,AI,BMP,DST

Cutting Thickness:

Depends,Materials,0-20mm,30mm Acrylic,0-15mm

Cooling Mode:

Water Cooling

Warranty:

1 Year

After-sales Service Provided:

Engineers Available To Service Machinery Overseas

Color:

White,according To Client,Required,Blue And White

Packaging Details:

wood

Highlight:

30mm acrylic tube cutting machine

water cooling tube cutting machine

30mm acrylic tube laser cutting machine

Product Description

QH-GZ Zero-tailing Laser Tube Cutting Machine Side-mounted Lathe Fully-automatic Loading

Description

The QH-GZ Zero-tailing Laser Tube Cutting Machine, equipped with a Side-mounted Lathe and Fully-automatic Loading system, is a high-efficiency tube processing solution tailored for batch production of round and square tubes—ideal for automotive components, hydraulic pipelines, and structural engineering where consistent throughput and labor cost control are critical. Its defining feature, the fully-automatic loading system, integrates seamlessly with the side-mounted lathe structure to realize end-to-end automated tube processing: it automatically feeds, positions, and clamps tubes (round tubes Φ15-500mm, square tubes 15×15-500×500mm, and lengths 5500-6500mm) without manual intervention, eliminating human errors from manual alignment.

Quick Detail

Core Fully-automatic Loading Highlights: Auto-feeds/positions/clamps Φ15-500mm (round) & 15×15-500×500mm (square) tubes; integrates with side-mounted lathe for 0-manual-intervention processing, paired with ≤5mm zero-tailing.
Key Specs: 1500W-20KW laser power; ±0.03mm X/Y precision; 5500-6500mm tube length capacity; 2T weight + 9620×2950×2080mm size.
Fit: Batch tube production (automotive/hydraulic); reduces labor dependency, suits 24/7 continuous operation.

Product Specifications

Model	QH-GZ
Cutting Diameter	Round Tube: Φ15-500mm Square Tube: 1515mm to 500500mm
Tube Length Capacity	5500-6500mm
Machine Weight	2T
Dimensions (LWH)	962029502080mm
Laser Power Range	1500W-20KW
Positioning Accuracy	±0.03mm (X/Y-axis)
Repositioning Accuracy	±0.03mm (X/Y-axis)
Compatible Tube Types	Round Tube / Square Tube

Advantage

Fully-automatic Loading Boosts Batch Efficiency: The auto-loading system cuts manual handling time by 60%-70%—for example, processing 50 6500mm-long Φ300mm round tubes takes 2.5 hours (vs. 6+ hours with manual loading). It also enables seamless tube-to-tube transition, reducing downtime between batches by 40%-50% and lifting daily throughput by 2-3x compared to semi-automatic models.
Auto-positioning Ensures Consistent Precision: Manual loading often causes alignment 偏差 (±0.1mm+), but the fully-automatic system’s mechanical positioning (paired with ±0.03mm axis accuracy) keeps tube centering error ≤±0.05mm. This ensures uniform cut depth and bevel angles across all batches, lowering rework rates from 15%-20% (manual) to 3%-5%—critical for weld-ready tube ends in hydraulic or structural applications.
Safe & Labor-Saving for Large/Heavy Tubes: For maximum-spec tubes (Φ500mm round tubes, 500×500mm square tubes, or 6500mm-long heavy steel tubes), manual loading requires 2-3 workers and risks injury. The fully-automatic system handles these heavy loads alone, reducing labor costs by 50%-60% and eliminating workplace safety hazards (e.g., tube slippage, back strain).
Synergy with Side-mounted Lathe & Zero-tailing: The side-mounted lathe’s horizontal clamping stabilizes tubes during auto-loading, preventing deformation that could ruin cuts. Combined with zero-tailing (≤5mm waste), this integrated automation ensures “load → cut → unload” one-flow processing—no manual trimming or material sorting needed. For high-cost metals (e.g., stainless steel), this saves ~300kg of material annually (based on 50 tubes/day) while cutting post-processing labor.
