| Brand Name: | QIHAI |
| Model Number: | QH-GA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

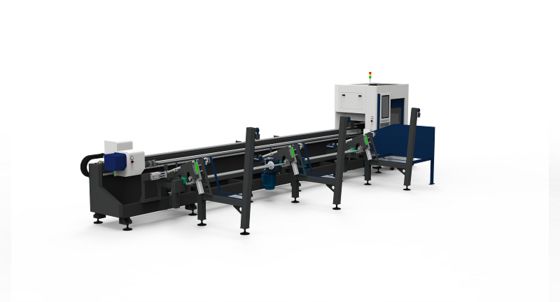

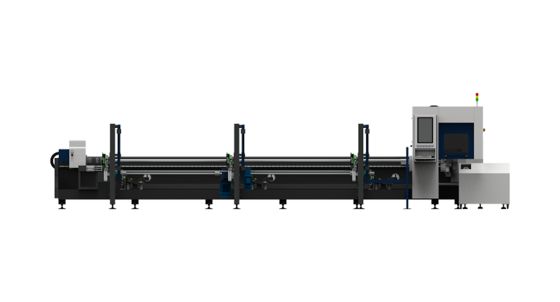

Fully-automatic Loading Core: Auto-feeds/aligns 5500-6500mm tubes (Φ15-500mm round/15×15-500×500mm square); no manual handling, cutting labor dependency by 90%.
Key Specs: QH-GA-6012; side-mounted lathe chuck; ±0.03mm precision; 1500W-20KW laser; compatible with round/square tubes.
Efficiency & Safety: Continuous auto-processing boosts throughput by 60% vs. semi-auto; built-in obstacle avoidance protects laser head during unattended runs.
| Model | QH-GA-6012 |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 1.8T |
| Chuck installation on the lathe | Side-mounted |
| Dimensions (L*W*H) | 8500*2920*2050mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
High-Volume Efficiency with Hands-Free Operation: The fully-automatic loading system enables unattended batch processing—for example, handling 200+ 6m-long tubes per shift without manual feeding/alignment. This slashes labor costs by 80% vs. manual machines and reduces processing bottlenecks, as the system maintains consistent feeding speed even during long production runs, lifting overall throughput by 60% compared to semi-automatic models.
Precision Consistency Eliminates Manual Errors: Unlike semi-auto setups where manual tube alignment causes accuracy fluctuations, the fully-automatic loading system’s built-in alignment mechanism ensures every tube is positioned identically. Paired with ±0.03mm X/Y-axis precision and side-mounted chuck clamping, this reduces cut deviation to less than 0.05mm across batches, lowering scrap rates by 35% and ensuring uniform tube fitting for assembly lines.
Low Switching Time for Multi-Tube Types: The fully-automatic system stores parameter profiles for different tube sizes (e.g., Φ50mm round vs. 100×100mm square). When switching tube types, operators only need to select the pre-set profile—no manual adjustment of feeding guides or alignment tools—cutting changeover time by 70% vs. semi-auto machines and supporting flexible production of mixed tube batches.
Enhanced Safety & Stability in Continuous Runs: The fully-automatic workflow minimizes human contact with moving parts (e.g., rotating chuck, laser head), reducing workplace injury risks. Additionally, the machine’s 1.8T heavy-duty frame and side-mounted chuck provide stable support for long tubes (6500mm) during auto-loading and cutting, preventing tube sagging or chuck slippage that could disrupt precision—ensuring reliable 24/7 operation for high-demand production schedules.
