| Brand Name: | QIHAI |
| Model Number: | QH - 6015FB |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

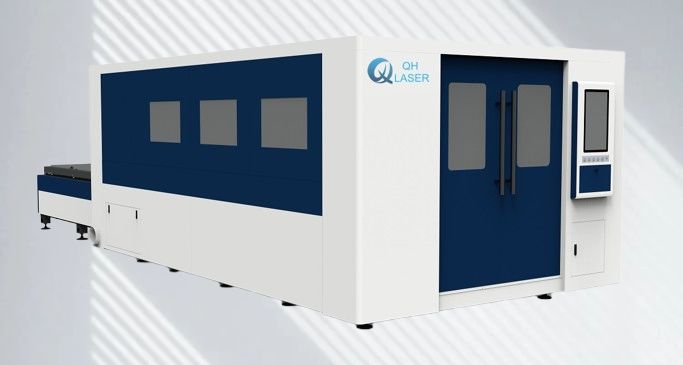

Dual-Platform Core: Alternating workflow (cutting + loading) eliminates downtime; 6000×1500mm area, 1000kg max loading per platform, 100m/min speed boosts batch efficiency by 30%-35%.
Enclosed Advantage: Captures fumes/sparks, reduces noise by 15-20dB, protects operators/equipment; prevents dust damage to servo transmission.
Key Specs: 1500W-20KW laser power (0.5-30mm thickness), ±0.03mm X/Y accuracy (consistent quality across platforms), 380V/50Hz industrial compatibility.
Fit: Batch production (heavy machinery, steel structures); safety-sensitive workshops.
| Processing Area | 6000 * 1500mm |
| Maximum Loading Weight | 1000kg |
| Machine Weight | 3500kg |
| Overall Dimensions | 8500×2280×2150mm |
| Laser Power Range | 1500W - 20KW |
| X/Y-axis Positioning Accuracy | ±0.03mm |
| X/Y-axis Repositioning Accuracy | ±0.03mm |
| Maximum Linkage Acceleration | 1.0G |
| Maximum Linkage Speed | 100m/min |
| Transmission System | Double rack & pinion transmission with servo drive |
| Voltage Requirement | 380V |
| Frequency | 50Hz |
Advantage
Dual-Platforms Deliver Uninterrupted Batch Efficiency: Unlike single-platform machines that pause for 15-20 minutes per load/unload cycle, the QH-6015FB’s alternating platforms cut total batch processing time by 30%-35%. For example, processing 50pcs of 6m×1.5m steel plates (20mm thick) takes 2.5-3 hours vs. 4-4.5 hours with single-platform models—critical for meeting tight delivery schedules in high-volume production.
Enclosed Structure Enhances Safety & Equipment Longevity: The fully enclosed design complies with industrial safety standards (e.g., IEC 60825 for laser safety) by blocking direct laser exposure and containing hazardous fumes (via optional built-in extraction ports). It also shields internal components (like the double rack & pinion transmission) from workshop dust, reducing maintenance frequency by 20%-25% and lowering long-term operational costs.
Dual-Platform Consistency Backed by High Precision: The double rack & pinion servo transmission and ±0.03mm X/Y accuracy ensure uniform cutting quality across both platforms—no variance in cut depth or edge smoothness when switching between platforms. This is vital for batch production of large components (e.g., steel structure beams), where dimensional consistency directly impacts assembly fit.
Enclosed Design Optimizes Workshop Environment: By reducing cutting noise to below 80dB (vs. 95-100dB for open machines) and containing fumes, the enclosed structure improves workplace air quality and reduces operator fatigue. This makes the QH-6015FB suitable for workshops with strict environmental or occupational health requirements, eliminating the need for additional noise/fume control equipment.
