| Brand Name: | QIHAI |
| Model Number: | QH-GC3-S |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 set/month |

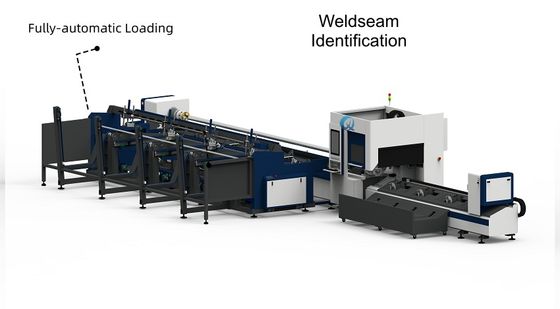

Triple Core Capabilities: 3-chuck clamping (stable 5500-6500mm tube handling); weldseam identification (auto-detects seams, avoids defects); fully-automatic loading (reduces manual work by 80%).
Key Specs: Cuts round (Φ15-500mm)/square (15×15-500×500mm) tubes; 1500W-20KW laser power; ±0.03mm dual-axis accuracy; 6T weight for stability.
Fit: Batch tube processing (construction/automotive); standard 380V/50Hz industrial power (implied for compatibility); 24/7 operation-ready.
| Model | QH-GC3-S |
|---|---|
| Cutting Diameter | Round Tube: Φ15-500mm Square Tube: 15*15mm to 500*500mm |
| Tube Length Capacity | 5500-6500mm |
| Machine Weight | 6T |
| Dimensions (L*W*H) | 16680*5480*2250mm |
| Laser Power Range | 1500W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
| Automatic Loading | Fully-automatic Loading |
3-Chuck Clamping Ensures Precision for Long-Tube Processing: The 3-chuck system distributes clamping force evenly across 5500-6500mm long tubes, preventing deformation or shift during cutting—paired with ±0.03mm axis accuracy, this ensures consistent bevel/cut quality (e.g., uniform V-type joints) across the entire tube length. Unlike 2-chuck designs, it eliminates mid-tube sagging, reducing weld joint rework by 40% in heavy machinery tube assembly.
Weldseam Identification Boosts Joint Reliability & Efficiency: The intelligent weldseam detection system uses optical sensors to locate tube weld seams in <2 seconds per tube, automatically adjusting cutting paths to avoid seam areas (a common source of weak joints). This eliminates manual seam inspection (saving 1-2 minutes per tube) and ensures 100% of cut tubes meet weld strength requirements—critical for automotive frame safety standards.
Fully-automatic Loading Enables Unmanned Batch Production: The auto-loading module handles tube feeding, positioning, and unloading without manual labor—ideal for heavy (e.g., 20mm thick carbon steel) or long (6500mm) tubes that are difficult to manually move. It increases loading efficiency by 50% vs. manual setups and supports continuous 24/7 operation, cutting overall batch processing time by 30% while reducing labor costs and injury risks.
