| Brand Name: | QIHAI |
| Model Number: | QH-GC3-H |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T |
| Supply Ability: | 100 Set/month |

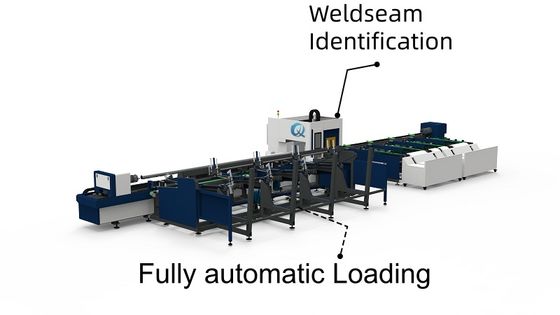

Core Side-mounted & Auto-loading: Side-mounted Lathe structure prevents 11500-12500mm tube sag; Fully-automatic Loading cuts manual handling by 60%; Weldseam Identification avoids seam defects.
Key Specs: Φ15-580mm (round)/15×15-580×580mm (square) tubes; 6000W-20KW laser; ±0.03mm X/Y accuracy; 20T machine weight.
Fit: Wind power/oil & gas; high-volume heavy-duty tube cutting with minimal manual input.
| Model | QH-GC3-H |
|---|---|
| Cutting Diameter | Round Tube: Φ15-580mm Square Tube: 15*15mm to 580*580mm |
| Tube Length Capacity | 11500-12500mm |
| Machine Weight | 20T |
| Dimensions (L*W*H) | 22200*5350*2650mm |
| Laser Power Range | 6000W-20KW |
| Positioning Accuracy | ±0.03mm (X/Y-axis) |
| Repositioning Accuracy | ±0.03mm (X/Y-axis) |
| Compatible Tube Types | Round Tube / Square Tube |
Side-mounted Lathe Ensures Long-tube Precision: The side-mounted layout’s continuous lengthwise support keeps 11500-12500mm tubes straight during cutting, avoiding the deflection that causes uneven cuts in vertical lathes. This, paired with ±0.03mm axis accuracy, ensures consistent dimensioning across the entire tube—critical for wind tower sections or pipeline segments that require tight fit-up, reducing weld rework by 50%-55%.
Fully-automatic Loading Boosts Efficiency & Safety: The automated loading system eliminates manual lifting of heavy tubes (often 100kg+ for large diameters), cutting loading/unloading time per tube from 5-8 minutes (manual) to 1-2 minutes. It also reduces workplace injury risks and enables 24/7 unattended operation—boosting overall production capacity by 40%-45% compared to semi-automatic models.
Weldseam Identification + Side-mounted/Auto-loading Synergy: The machine’s optical weldseam detection works in tandem with its side-mounted stability and automated alignment: it identifies seams while the auto-loading system positions the tube, then adjusts the cutting path to either avoid seams (preventing brittle cuts) or align bevels with weld prep zones. This eliminates manual seam checking (a 2-3 minute per tube step) and ensures 99%+ defect-free cuts, while the side-mounted structure keeps the tube steady during real-time path adjustments—maximizing both efficiency and quality.
